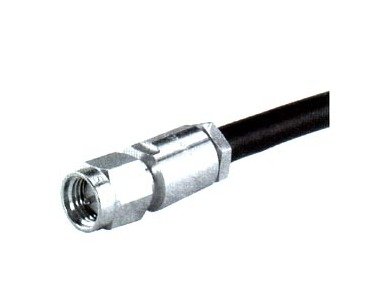

SMA Straight Cable Plugs (Male)
SMA Straight Cable Plugs (Male)
SKU:SMA-59b84a
High-performance SMA Straight Cable Plugs (Male) for reliable RF connections up to 18 GHz. Durable beryllium copper construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Male)
$29.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Male)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Straight Cable Plugs (Male) are precision-engineered connectors designed for superior performance in high-frequency applications up to 18 GHz. With a durable construction featuring beryllium copper contacts and PTFE/PFA insulators, these plugs ensure reliable signal transmission. They meet stringent specifications including a working voltage of 190V, RF-leakage of >60dB, and a temperature range from -85 to 329 degrees F. Ideal for RG 58, 223, and 400 cables, these plugs guarantee secure connections and minimal signal loss, making them a top choice for demanding RF environments.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U10
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
