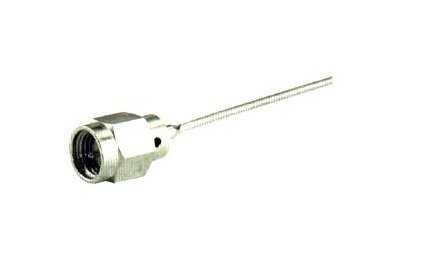

SMA Straight Cable Plugs - Male (18 GHz, EZ 34, 47)
SMA Straight Cable Plugs - Male (18 GHz, EZ 34, 47)
SKU:SMA-d54269
Enhance RF connectivity with our high-performance SMA Cable Plugs - Male. Ideal for up to 18 GHz frequency range, 50 ohm impedance.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs - Male (18 GHz, EZ 34, 47)
$12.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs - Male (18 GHz, EZ 34, 47)
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your RF connectivity with our SMA Straight Cable Plugs - Male. Designed for superior performance, these connectors feature a frequency range up to 18 GHz, impedance of 50 ohms, and high RF-leakage protection. Constructed with hardened beryllium copper, gold-plated body, and PTFE/PFA insulator, these plugs ensure reliability in diverse environments. Compliant with federal procurement standards, including NIST guidelines, these cable plugs meet stringent quality and performance requirements.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y2
Specifications Cable Type
semi-rigid
Specifications Configuration
pin and insulator
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
