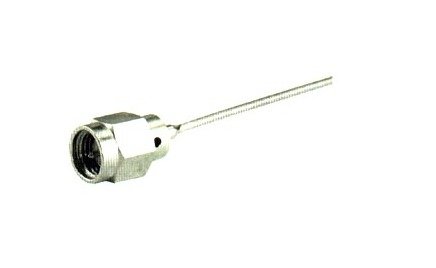

SMA Straight Cable Plugs (male) - EZ 34, 47
SMA Straight Cable Plugs (male) - EZ 34, 47
SKU:SMA-8574c4
High-performance SMA Straight Cable Plugs (male) for RF applications up to 18 GHz. Beryllium copper contacts, gold plating, and PTFE/PFA insulators.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (male) - EZ 34, 47
$29.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (male) - EZ 34, 47
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your RF connectivity with our SMA Straight Cable Plugs (male) in EZ 34 and 47 configurations. Designed for high-frequency applications up to 18 GHz, these plugs feature beryllium copper contacts, PTFE/PFA insulators, and gold plating for optimal performance and durability. With compliance to industry standards and a wide temperature range, these plugs ensure reliable connections in demanding environments.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y1
Specifications Cable Type
semi-rigid
Specifications Configuration
pin and insulator
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 20
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
