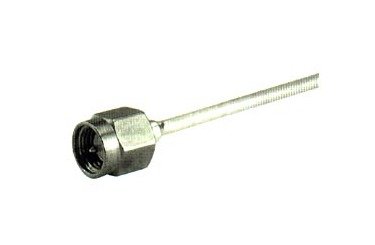

SMA Straight Cable Plugs (Male) - EZ 86, DC-18 GHz

Name: SMA Straight Cable Plugs (Male) - EZ 86, DC-18 GHz
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-b6487f
Price: 39.99 USD
Availability: OutOfStock

SKU:SMA-b6487f

High-performance SMA Straight Cable Plugs (Male) for reliable connections up to 18 GHz. Compliant with government standards.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SMA Straight Cable Plugs (Male) are precision-engineered for seamless connectivity in high-frequency applications up to 18 GHz. Crafted with beryllium copper and hardened materials, these plugs ensure reliable performance with low contact resistance and superior durability. Featuring a corrosion-resistant stainless steel body and PTFE/PFA insulator, they maintain signal integrity even in extreme temperature ranges from -85°F to 329°F. With compliance to stringent government and industry standards, including Federal procurement requirements, these cable plugs are ideal for institutional and commercial applications.

Product Specifications

Specifications Body Material

Beryllium copper, hardened

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Cable Group

Y3, Y11

Specifications Cable Type

semi-rigid

Specifications Configuration

pin and insulator

Specifications Connection

male

Specifications Connector Series

<2.5

Specifications Contact Captivation Lbs

SMA

Specifications Contact Resistance Centre Contact Ohms

<85/<125

Specifications Contact Resistance Outer Contact Ohms

Specifications Corona Extinction Voltage V Rms

<335/<500

Specifications Crimp Ferrule Material

copper, brass

Specifications Dielectic Withstanding Voltage V Rms

1000/1500

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Insulator Material

PTFE or PFA

Specifications Packaging

bulk 100 pcs.

Specifications Pin Contact Material

Beryllium copper, hardened

Specifications Plating Body

stainless steel

Specifications Rf Leakage Db

>100

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-85 to 329

Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol

250/375
