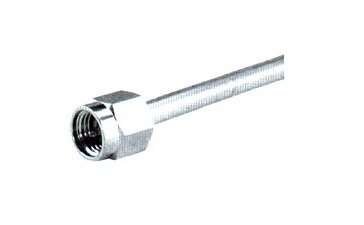

SMA Straight Cable Plugs (Male) for EZ 141 - No Pin
SMA Straight Cable Plugs (Male) for EZ 141 - No Pin
SKU:SMA-908774
Premium SMA Straight Cable Plugs for high-frequency RF connections up to 26.5 GHz, featuring beryllium copper construction and PTFE/PFA insulators.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Male) for EZ 141 - No Pin
$49.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Male) for EZ 141 - No Pin
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your RF connectivity with our SMA Straight Cable Plugs designed for high-frequency applications up to 26.5 GHz. These plugs feature superior materials like beryllium copper, hardened for durability, and PTFE/PFA insulators for reliable performance. With an impedance of 50 ohms, RF-Leakage >100 dB, and a temperature range of -85 to 329°F, these plugs ensure secure connections in demanding environments. Suitable for SMA cable connectors up to 18 GHz, our plugs offer exceptional electrical properties and compliance with stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5
Specifications Cable Type
semi-rigid
Specifications Configuration
without pin and insulator
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
26.5
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
