SMA Straight Cable Plugs (male) for EZ 141 - No Pin
SMA Straight Cable Plugs (male) for EZ 141 - No Pin
SKU:SMA-c73b56
Top-quality SMA Straight Cable Plugs for EZ 141 cables - optimized for 18 GHz frequency range. Bulk packaged for your convenience.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (male) for EZ 141 - No Pin
$89.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (male) for EZ 141 - No Pin
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

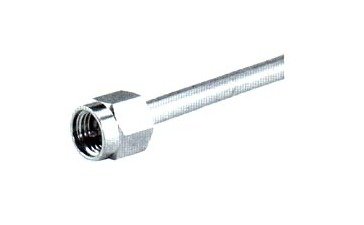

Experience superior signal integrity and durability with our SMA Straight Cable Plugs designed for EZ 141 cables. These male connectors feature a gold-plated body, beryllium copper contacts, and PTFE/PFA insulators, ensuring reliable performance in frequency ranges up to 18 GHz. With a hardened body material and exceptional RF resistance, these plugs excel in demanding environments. Ideal for SMA Cable Connectors applications, these plugs are bulk-packaged for convenience.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5
Specifications Cable Type
semi-rigid
Specifications Configuration
without pin and insulator
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
26.5
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
