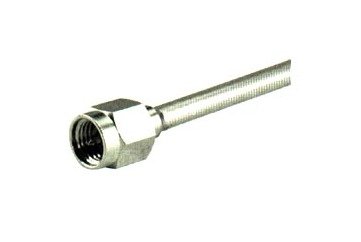

SMA Straight Cable Plugs (Male) for EZ141, Non-Captivated
SMA Straight Cable Plugs (Male) for EZ141, Non-Captivated
SKU:SMA-a8de95
Enhance connectivity with our high-performance SMA Straight Cable Plugs for EZ141 cables, designed for reliability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Male) for EZ141, Non-Captivated
$49.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Male) for EZ141, Non-Captivated
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our SMA Straight Cable Plugs designed for EZ141 cables. These male connectors feature a robust design with beryllium copper construction, ideal for high-frequency applications up to 26.5 GHz. With impressive technical specifications including RF-Leakage exceeding 100 dB and a wide temperature range from -85 to 329 degrees F, these plugs ensure reliable performance in demanding environments. Compliant with industry standards, these connectors offer exceptional efficiency and durability for both consumer and institutional applications.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5
Specifications Cable Type
semi-rigid
Specifications Configuration
without pin and insulator
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
26.5
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
stainless steel
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
