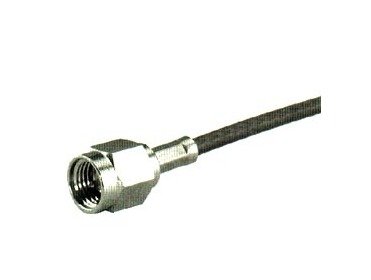

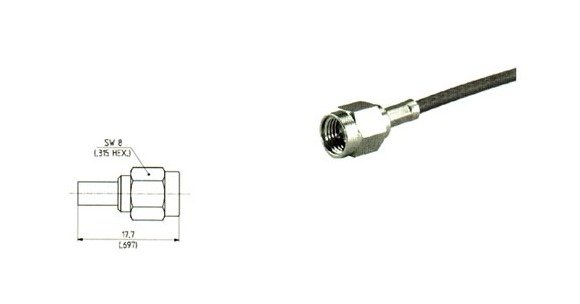

SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
SKU:SMA-e1a459
Premium SMA Straight Cable Plugs (Male) for reliable RF connections up to 18 GHz, ideal for demanding applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
$29.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-quality SMA Straight Cable Plugs (Male) designed for precision and performance. With a frequency range of DC - 18 GHz, superior RF-Leakage (>60 dB), and compliant with standards like 750/1000V Dielectric Withstanding Voltage and -85 to 329°F Temperature Range. These plugs, featuring Beryllium copper construction and PTFE or PFA insulator materials, ensure durability and reliability for critical connections in SMA Cable Connectors.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
stainless steel
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
