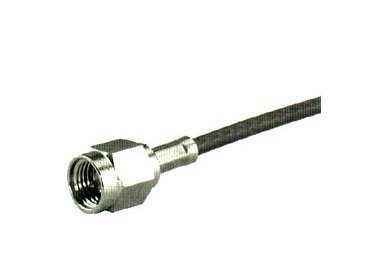

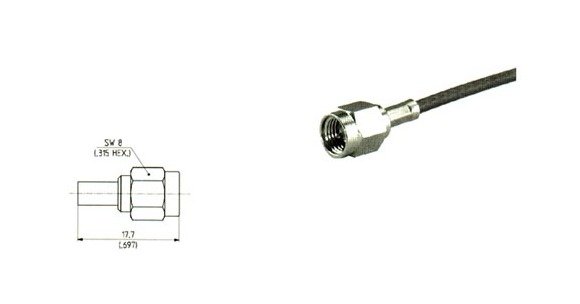

SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
SKU:SMA-7009fa
Enhance RF connections with SMA Straight Cable Plugs - RG 178, 316, K02252D. Durable, high-performance, and compliant with stringent specifications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
$39.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your RF connections with our SMA Straight Cable Plugs. Specifically designed for superior performance, these plugs feature a durable Beryllium copper construction, gold plating for optimal conductivity, and a broad frequency range from DC to 18 GHz. With compliant specifications including <65 ohms contact resistance, PTFE/PFA insulator, and RF-Leakage >60 dB, these plugs ensure reliable connections in demanding environments. Ideal for military, aerospace, and industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
