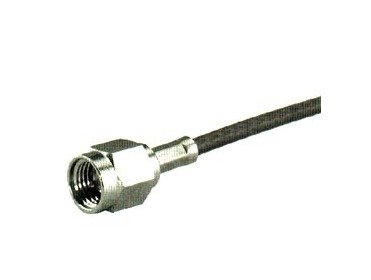

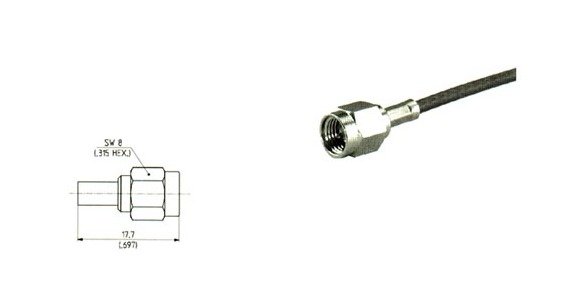

SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
SKU:SMA-21cefc
Enhance RF connections with SMA Straight Cable Plugs featuring high-performance materials and precision engineering for reliability and durability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
$39.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Male) - RG 178, 316, K02252D
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your RF connectivity with our SMA Straight Cable Plugs. Designed for precision and reliability, these connectors feature a frequency range of DC to 18 GHz, impedance of 50 ohms, and superior RF leakage protection. Crafted from beryllium copper and PTFE/PFA insulators, these plugs ensure high performance in extreme temperatures (-85°F to 329°F) and challenging environments. With compliance to industry standards and exceptional contact resistance, these cable plugs are ideal for critical applications.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
