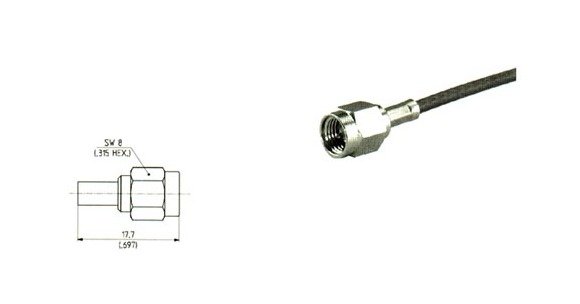

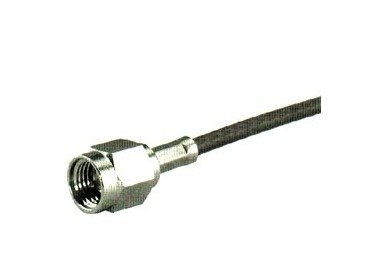

SMA Straight Cable Plugs - Male (RG 178, RG 316, K02252D)
SMA Straight Cable Plugs - Male (RG 178, RG 316, K02252D)
SKU:SMA-2cfcff
Premium SMA Straight Cable Plugs - Male (RG 178, RG 316, K02252D) for high-frequency applications, durable construction, and wide frequency range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs - Male (RG 178, RG 316, K02252D)
$29.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs - Male (RG 178, RG 316, K02252D)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Straight Cable Plugs - Male are precision-engineered for optimal performance in high-frequency applications up to 18 GHz. With a durable construction of beryllium copper and hardened materials, these connectors ensure robust connectivity. Featuring a wide frequency range, low RF-Leakage, and compliant with critical standards, these plugs are ideal for demanding RF environments.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
stainless steel
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
