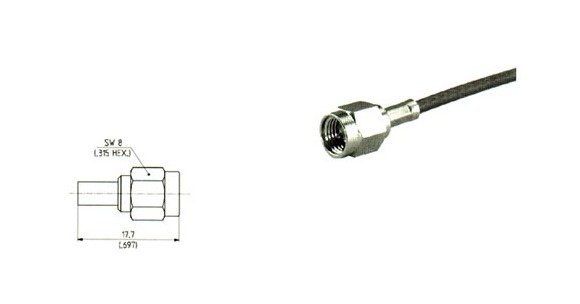

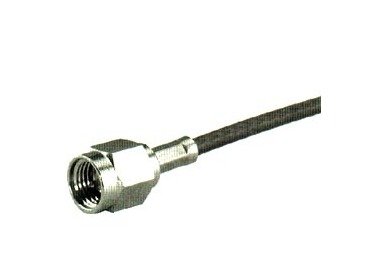

SMA Straight Cable Plugs (Male) RG178/316/K02252D
SMA Straight Cable Plugs (Male) RG178/316/K02252D
SKU:SMA-503631
Enhance your SMA cable setups with our high-performance Straight Cable Plugs (Male) for reliable signal integrity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Male) RG178/316/K02252D
$29.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Male) RG178/316/K02252D
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your SMA cable connections with our SMA Straight Cable Plugs (Male) compatible with RG178, RG316, K02252D cables. With superior materials like hardened beryllium copper and gold plating, these connectors ensure precise, low-resistance signal transmission. Designed for a frequency range of DC to 18 GHz, RF-Leakage >60dB, and withstand temperatures from -85 to 329°F, these plugs meet strict industry standards for impedance, voltage, and contact resistance.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
