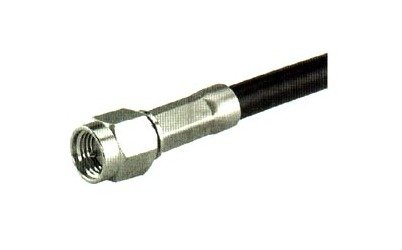

SMA Straight Cable Plugs (Male) - RG58/RG400, SMA Subminiature Connectors
SMA Straight Cable Plugs (Male) - RG58/RG400, SMA Subminiature Connectors
SKU:SMA-7f55e5
Enhance RF connections with our SMA Straight Cable Plugs (Male) for RG58/RG400 cables. Impedance: 50 ohms, Frequency: Up to 18 GHz.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Straight Cable Plugs (Male) - RG58/RG400, SMA Subminiature Connectors
$29.99
Quantity: 1
Claim Your Seller Account
SMA Straight Cable Plugs (Male) - RG58/RG400, SMA Subminiature Connectors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our SMA Straight Cable Plugs (Male) designed for RG58 and RG400 cables. With an impedance of 50 ohms and a frequency range up to 18 GHz, these plugs ensure reliable RF connections. Built with hardened Beryllium copper and PTFE/PFA insulator materials, they offer exceptional performance, with compliance to stringent institutional standards like Federal/DoD, GSA, FAR, DLA, and TAA.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U9, U11
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
