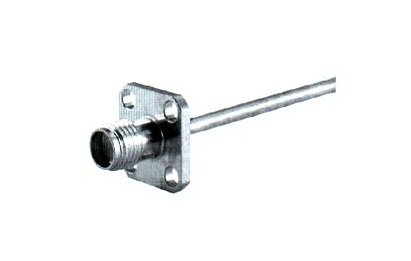

SMA Straight Panel Cable Plug (Female)
SMA Straight Panel Cable Plug (Female)
SKU:SMA-9c4ca4
High-performance SMA Straight Panel Cable Plug (Female) for up to 18 GHz frequencies with beryllium copper construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SMA Straight Panel Cable Plug (Female)
$24.99
Quantity: 1
Claim Your Seller Account
SMA Straight Panel Cable Plug (Female)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Straight Panel Cable Plug (Female) is designed for high-frequency applications up to 18 GHz. With a durable body material crafted from beryllium copper and hardened pin and socket contacts, this connector ensures reliable performance in extreme temperatures ranging from -85 to 329 degrees Fahrenheit. Its PTFE or PFA insulator material and gold-plated body offer excellent signal transmission and corrosion resistance. Meeting stringent RF standards, including a minimum RF-Leakage of >100 dB, this SMA connector is ideal for both consumer and institutional buyers seeking top-tier quality and performance.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Configuration
straight panel
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
