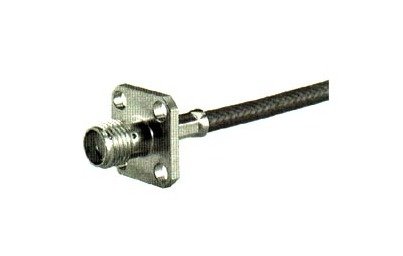

SMA Straight Panel Cable Plugs (Female)
SMA Straight Panel Cable Plugs (Female)
SKU:SMA-c1d5f1
Precision-engineered SMA Straight Panel Cable Plugs for high-frequency applications up to 18 GHz. Ideal for DoD and government procurements.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SMA Straight Panel Cable Plugs (Female)
$34.99
Quantity: 1
Claim Your Seller Account
SMA Straight Panel Cable Plugs (Female)
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMA Straight Panel Cable Plugs (Female) are precision-engineered for high-frequency applications up to 18 GHz. With 50 ohms impedance, gold-plated body, and hardened beryllium copper contacts, these connectors ensure reliable signal transmission even in extreme temperatures (-85°F to 329°F). Meeting stringent DoD and GSA requirements, these connectors offer superior RF-Leakage (>60 dB) and dielectric withstanding voltage (750/1000 V rms), making them ideal for government and institutional procurement needs.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Configuration
straight panel
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 19
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
