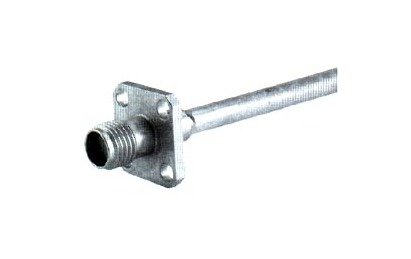

SMA Straight Panel Cable Plugs (Female) - EZ141
SMA Straight Panel Cable Plugs (Female) - EZ141
SKU:SMA-8bfbd2
Enhance connectivity with SMA Straight Panel Cable Plugs - EZ141 for secure, high-frequency data transmission.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Straight Panel Cable Plugs (Female) - EZ141
$29.99
Quantity: 1
Claim Your Seller Account
SMA Straight Panel Cable Plugs (Female) - EZ141
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our SMA Straight Panel Cable Plugs, designed for seamless integration into SMA subminiature connectors systems up to 18 GHz. Crafted with beryllium copper for durability, these plugs offer superior RF-leakage protection, high dielectric withstanding voltage, and a wide temperature range. Ideal for institutional applications requiring precise impedance control and reliability.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5, Y12
Specifications Cable Type
semi-rigid
Specifications Configuration
straight panel
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 19
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
