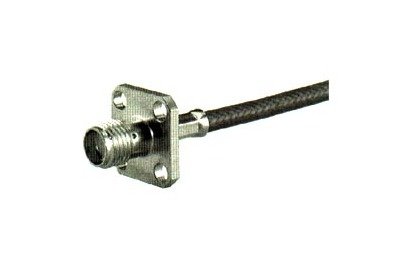

SMA Straight Panel Cable Plugs (Female) RG 316
SMA Straight Panel Cable Plugs (Female) RG 316
SKU:SMA-aaaf53
Enhance connectivity with high-performance SMA Straight Panel Cable Plugs (Female) RG 316, compliant with DoD standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMA Straight Panel Cable Plugs (Female) RG 316
$29.99
Quantity: 1
Claim Your Seller Account
SMA Straight Panel Cable Plugs (Female) RG 316
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our SMA Straight Panel Cable Plugs. Designed for high-frequency applications up to 18GHz, these connectors feature beryllium copper construction, gold plating, and PTFE/PFA insulators for superior performance and durability. With compliance to DoD procurement standards, these plugs ensure reliable RF connections even in demanding environments.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Configuration
straight panel
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Mounting Hole
ML 19
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
