Precision-engineered SMA Transition Pin Panel Jack Launchers for reliable high-frequency signal transmission.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

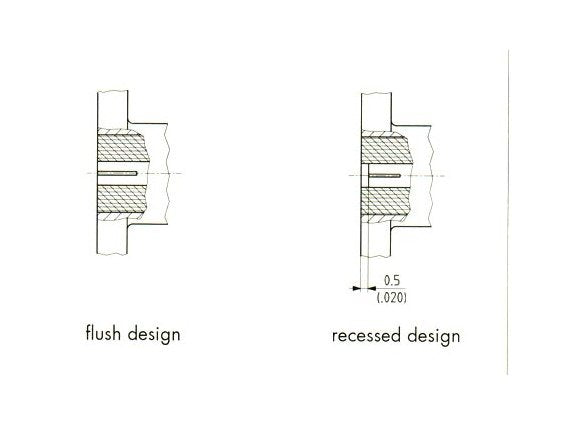

The SMA Transition Pin Panel Jack Launchers are precision-engineered connectors designed for seamless transitions in high-frequency applications. These launchers feature interchangeable transition pins, insulators, and housings with a recessed or flush rear contact option. With a cable dielectric diameter ranging from .066 to .117 inches, 50-ohm impedance, and a broad frequency range of DC to 18 GHz, these launchers ensure reliable signal transmission. Constructed with stainless steel plating, these female connection launchers offer a recessed design for optimal performance.

Product Specifications

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Configuration

recessed design launcher

Specifications Connection

female

Specifications Connector Series

SMA

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Packaging

single

Specifications Plating Body

stainless steel
