Small Bipolar Electromagnet - Industrial Grade
Small Bipolar Electromagnet - Industrial Grade
SKU:SMA-ff805c
Enhanced Small Bipolar Electromagnet for precise industrial applications with optional 24V and 110V DC voltages, 5W power, and 25 lb pull capacity.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Small Bipolar Electromagnet - Industrial Grade
$59.99
Quantity: 1
Claim Your Seller Account
Small Bipolar Electromagnet - Industrial Grade
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

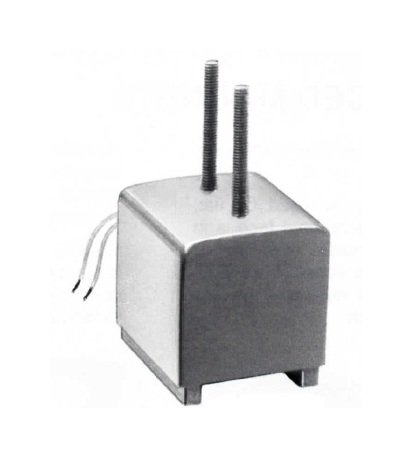

The Small Bipolar Electromagnet is designed for precision magnetic applications, excelling in reaching out through air gaps or non-magnetic materials. With two extended poles, it efficiently handles round, uneven, and irregularly shaped parts. Featuring optional DC voltages of 24V and 110V, along with a standard rating of 12V, this electromagnet offers a reliable power of 5W. Its compact dimensions of 15/16" width, 1 5/8" length, and 1 5/8" height, coupled with a 25 lb pull capacity, make it ideal for various industrial uses. Additionally, the auxiliary pole shoes enhance contact with workpieces for precise performance.

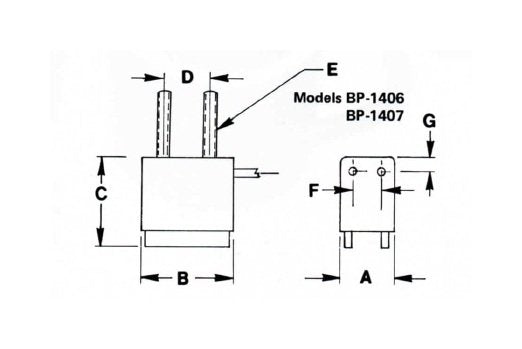

Product Specifications
Specifications Height C
1 5/8 in
Specifications Length B
1 5/8 in
Specifications Location Of Leads F
7/16 in
Specifications Location Of Leads G
1/4 in
Specifications Mounting D
7/8 in
Specifications Net Weight
8 oz
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
5 W
Specifications Pull Capacity
25 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread And Length E
10-32 x 15/16 in long
Specifications Width A
15/16 in
