Small Bipolar Electromagnet - Precision Reach & Versatility
Small Bipolar Electromagnet - Precision Reach & Versatility
SKU:SMA-cb3886
Experience superior magnetic reach and adaptability with our Small Bipolar Electromagnet. Ideal for various workpieces, this electromagnet offers a 360 lb pull capacity and optional voltage ratings of 24 V and 110 V.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Small Bipolar Electromagnet - Precision Reach & Versatility
$129.99
Quantity: 1
Claim Your Seller Account
Small Bipolar Electromagnet - Precision Reach & Versatility
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

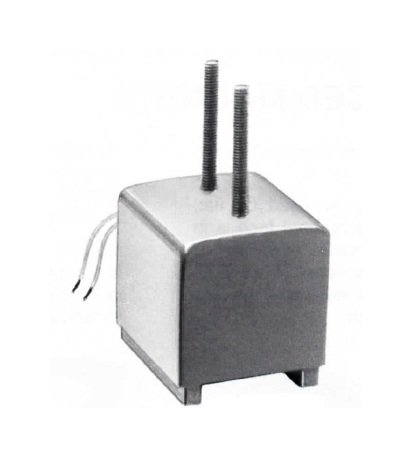

Unlock unparalleled magnetic capabilities with our Small Bipolar Electromagnet. Featuring extended poles for enhanced reach and adaptability, this electromagnet outperforms flat-faced magnets across various workpieces. Ideal for round, uneven, or odd-shaped parts, it offers a 360 lb pull capacity. With optional voltage ratings of 24 V and 110 V, along with standard 12 VDC, and a power of 12 W, this electromagnet ensures precise and reliable performance. Complete with contoured pole shoes for optimal contact and measuring 1 1/2" in width, 3 1/2" in length, and 2 5/8" in height, this electromagnet is a game-changer.

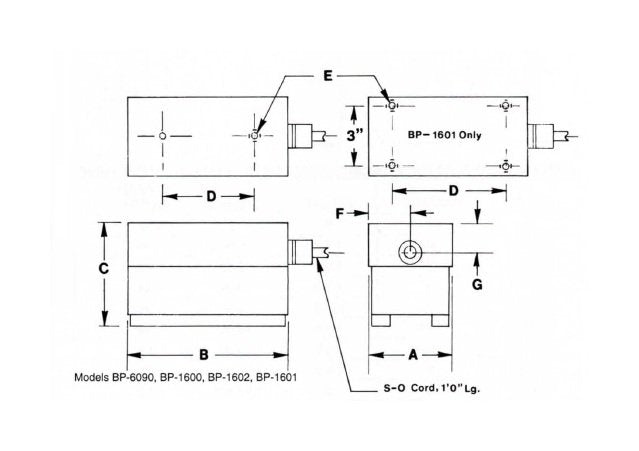

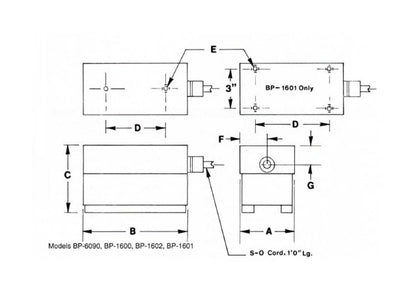

Product Specifications
Specifications Height C
2 5/8 in
Specifications Length B
3 1/2 in
Specifications Location Of Leads F
3/4 in
Specifications Location Of Leads G
5/8 in
Specifications Mounting D
2 1/4 in
Specifications Net Weight
2 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
12 W
Specifications Pull Capacity
360 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread And Length E
1/4-20 x 3/8 in deep
Specifications Width A
1 1/2 in
