Versatile Small Bipolar Electromagnet for superior 'reach-out' and handling round, uneven, and odd-shaped parts. Optional voltage ratings available.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Small Bipolar Electromagnet - Round Parts & Uneven Surfaces
$129.99
Quantity: 1
Claim Your Seller Account
Small Bipolar Electromagnet - Round Parts & Uneven Surfaces
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

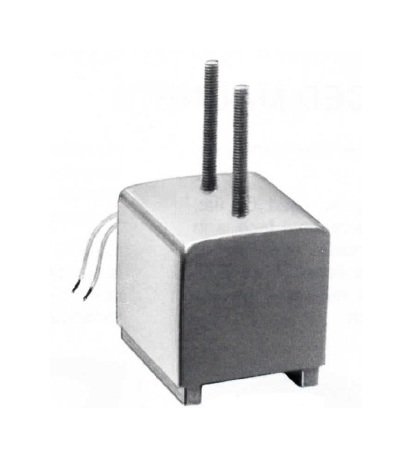

The Small Bipolar Electromagnet features extended poles for superior 'reach-out' compared to flat-faced magnets, making it ideal for operations through air gaps or non-magnetic materials. With optional voltage ratings of 24 V and 110 V in addition to the standard 12 V, this electromagnet offers versatility in power supply. Designed to handle round, uneven, and odd-shaped parts, it comes with contoured auxiliary pole shoes for enhanced workpiece contact. With a pull capacity of 440 lb and precise dimensions, this electromagnet is perfect for industrial applications requiring reliable magnetic strength.

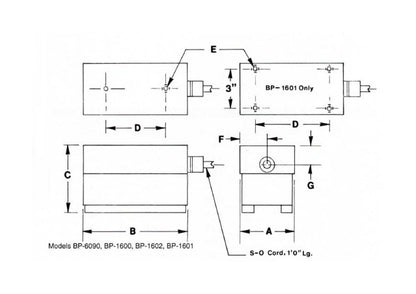

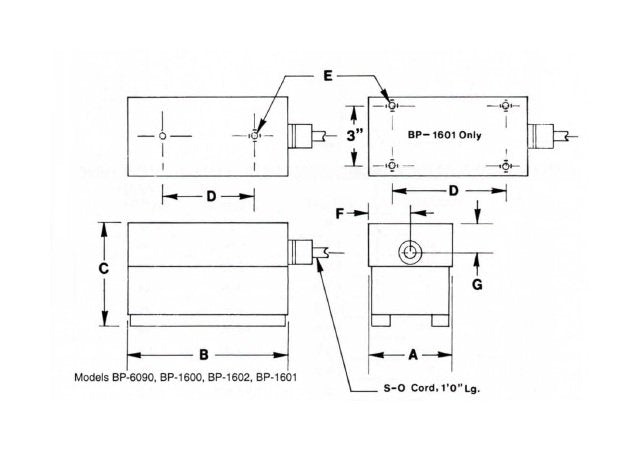

Product Specifications
Specifications Height C
3 7/8 in
Specifications Length B
4 1/8 in
Specifications Location Of Leads F
1 3/16 in
Specifications Location Of Leads G
1 1/8 in
Specifications Mounting D
2 1/2 in
Specifications Net Weight
6 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
15 W
Specifications Pull Capacity
440 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread And Length E
3/8-16 x 1/2 in deep
Specifications Width A
2 3/8 in
