Small Bipolar Electromagnet with 650 lb Pull Capacity
Small Bipolar Electromagnet with 650 lb Pull Capacity
SKU:SMA-ce5ef3
Enhanced Small Bipolar Electromagnet for precise and powerful industrial applications. Optional DC voltage, 22W power, and 650 lb pull capacity.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Small Bipolar Electromagnet with 650 lb Pull Capacity
$289.99
Quantity: 1
Claim Your Seller Account
Small Bipolar Electromagnet with 650 lb Pull Capacity
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

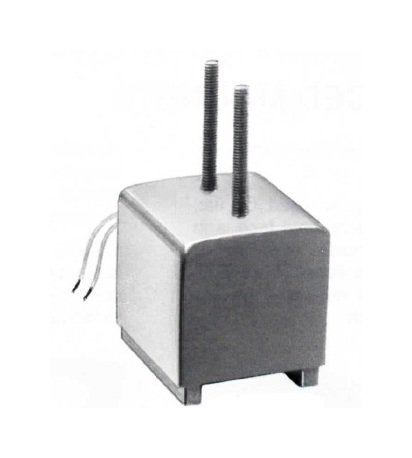

The Small Bipolar Electromagnet with 650 lb Pull Capacity is engineered for superior performance, especially when operating through air gaps or non-magnetic materials. With two extended poles, it is designed to handle round, uneven, and odd-shaped parts. Add contoured auxiliary pole shoes for enhanced workpiece contact. This electromagnet offers optional DC voltage ratings of 24 V and 110 V (standard 12 V), 22 W power, and precise dimensions to meet diverse industrial needs.
Product Specifications

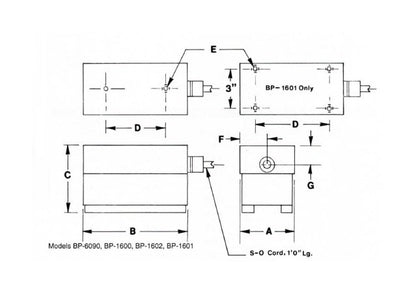

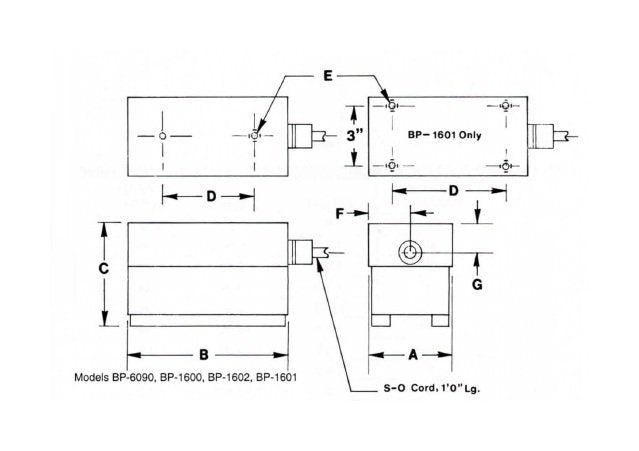

Specifications Height C
4 in
Specifications Length B
5 5/8 in
Specifications Location Of Leads F
1 7/16 in
Specifications Location Of Leads G
1 1/8 in
Specifications Mounting D
3 1/2 in
Specifications Net Weight
11 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
22 W
Specifications Pull Capacity
650 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread And Length E
3/8-16 x 1/2 in deep
Specifications Width A
2 7/8 in
