Small Bipolar Electromagnet with Contoured Pole Shoes
Small Bipolar Electromagnet with Contoured Pole Shoes
SKU:SMA-21c897
Achieve superior magnetic performance with the Small Bipolar Electromagnet for diverse industrial applications. Standard 12VDC, optional 24VDC/110VDC.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Small Bipolar Electromagnet with Contoured Pole Shoes
$89.99
Quantity: 1
Claim Your Seller Account
Small Bipolar Electromagnet with Contoured Pole Shoes
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

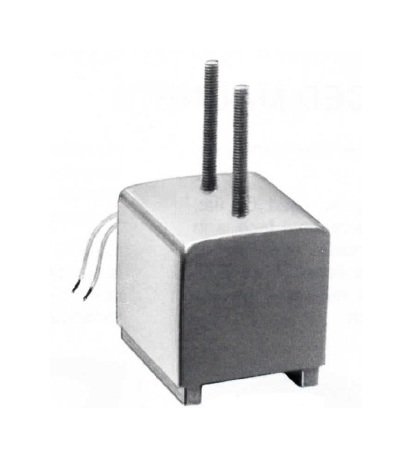

The Small Bipolar Electromagnet with Contoured Pole Shoes offers superior magnetic 'reach-out' compared to flat-faced electromagnets, making it ideal for applications with air gaps or non-magnetic materials. Featuring two extended poles, it excels with round, uneven, and odd-shaped parts. The included contoured pole shoes ensure optimal contact with the workpiece. With a standard 12 VDC and optional 24 VDC or 110 VDC power supply, this electromagnet delivers 80 lb pull capacity, making it versatile for various industrial uses.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

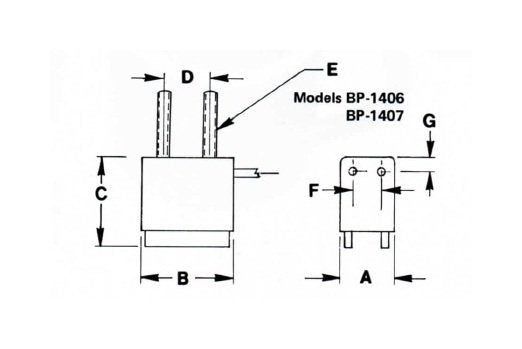

Specifications Height C
1 13/16 in
Specifications Length B
2 in
Specifications Location Of Leads F
1 in
Specifications Location Of Leads G
5/16 in
Specifications Mounting D
7/8 in
Specifications Net Weight
1 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
6.5 W
Specifications Pull Capacity
80 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread And Length E
10-32 x 15/16 in long
Specifications Width A
1 11/16 in
