Small Flat Faced Electromagnet 3x2
Small Flat Faced Electromagnet 3x2
SKU:SMA-874b57
Powerful 500 lb Small Flat Faced Electromagnet for various applications. 3x2 dimensions, 12W, 24V/110V options.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Small Flat Faced Electromagnet 3x2
$149.99
Quantity: 1
Claim Your Seller Account
Small Flat Faced Electromagnet 3x2
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

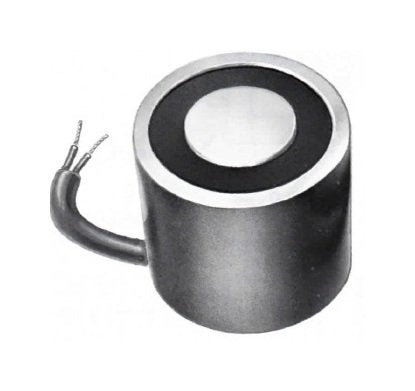

The Small Flat Faced Electromagnet 3x2 is a versatile solution suitable for both consumer and institutional needs. With a diameter of 3 inches and a height of 2 inches, this electromagnet provides a strong pull capacity of 500 lbs, making it ideal for various applications. It features a 12W power rating, optional DC voltage ratings of 24V and 110V, and a standard DC voltage of 12V. Additionally, it is designed for use on flat, smooth surfaces with low carbon steel and can be operated manually or automated. For further customization or special requirements, consult the factory for tailored solutions.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.
Specifications Diameter A
3 in
Specifications Height B
2 in
Specifications Location Of Leads E
5/8
Specifications Net Weight
3 1/4 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
12 W
Specifications Pull Capacity
500 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread C
1/4 to 20 in
Specifications Thread Depth D
1/2 in
Specifications Type
2
