Small Flat Rectangular Electromagnet w/ 200 lb Pull Capacity
Small Flat Rectangular Electromagnet w/ 200 lb Pull Capacity
SKU:SMA-ee2a9f
Compact yet powerful electromagnet with 200 lb pull capacity. Ideal for manual & automated applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Small Flat Rectangular Electromagnet w/ 200 lb Pull Capacity
$129.99
Quantity: 1
Claim Your Seller Account
Small Flat Rectangular Electromagnet w/ 200 lb Pull Capacity
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

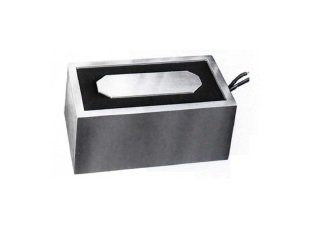

The Small Flat Rectangular Electromagnet provides a reliable and strong magnetic pull capacity of 200 lb, ideal for various applications in both manual and automated settings. With precise dimensions of Width 1 1/2 in, Length 2 1/2 in, and Height 1 1/4 in, this electromagnet ensures efficient performance. It features optional DC Voltage Ratings of 24V or 110V, making it versatile for different power requirements. Additionally, the inclusion of Rectifier-Controllers ensures safe and clean workpiece release, meeting industry standards for quality and functionality.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.

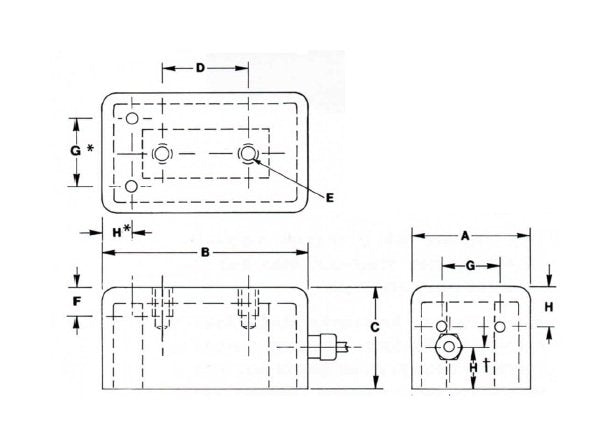

Specifications Height C
1 1/4 in
Specifications Length B
2 1/2 in
Specifications Location Of Leads G
3/4 in
Specifications Location Of Leads H
1/2 in
Specifications Mounting D
1 in
Specifications Net Weight
1 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
5 W
Specifications Pull Capacity
200 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread Depth F
3/8 in
Specifications Thread E
10 to 32 in
Specifications Width A
1 1/2 in
