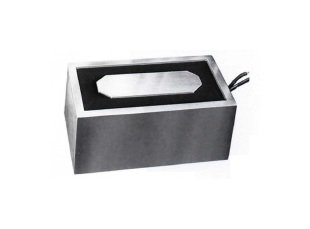

Small Rectangular Flat Faced Electromagnet - 2000 lb Pull Capacity
Small Rectangular Flat Faced Electromagnet - 2000 lb Pull Capacity
SKU:SMA-327e79
Enhance operations with our Small Rectangular Flat Faced Electromagnet - 2000 lb Pull Capacity. Ideal for flat, smooth materials, manual, or automated applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Small Rectangular Flat Faced Electromagnet - 2000 lb Pull Capacity
$349.99
Quantity: 1
Claim Your Seller Account
Small Rectangular Flat Faced Electromagnet - 2000 lb Pull Capacity
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electromagnet capabilities with our Small Rectangular Flat Faced Electromagnet featuring a 2000 lb pull capacity. Designed for flat, smooth materials with precise specifications of 4x8x2.5 inches, 110 V power, and a net weight of 22 lbs. Ideal for both manual and automated applications, ensuring optimal performance and secure holding. With a requirement of Rectifier-Controllers for converting AC to DC, this electromagnet guarantees a clean release for enhanced efficiency and safety.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
110 VDC (except EM-476) is standard voltage. Consult factory for additional sizes, modifications and custom applications.

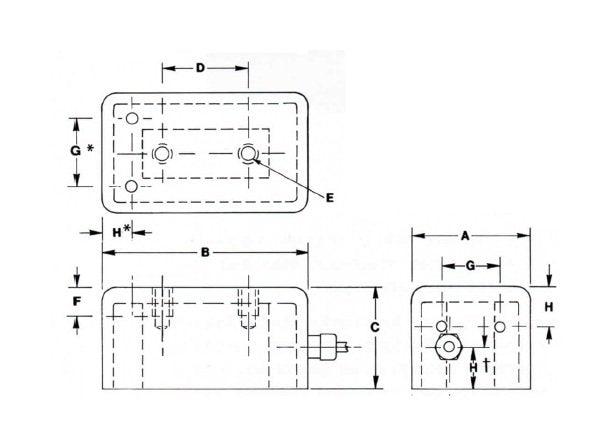

Specifications Height C
2 1/2 in
Specifications Length B
8 in
Specifications Location Of Leads G
1 1/4 in
Specifications Location Of Leads H
1 1/4 in
Specifications Mounting D
4 in
Specifications Net Weight
22 lb
Specifications Power
42 W
Specifications Pull Capacity
2000 lb
Specifications Standard Dc Voltage
110 V
Specifications Thread Depth F
3/4 in
Specifications Thread E
3/8 to 16 in
Specifications Width A
4 in
