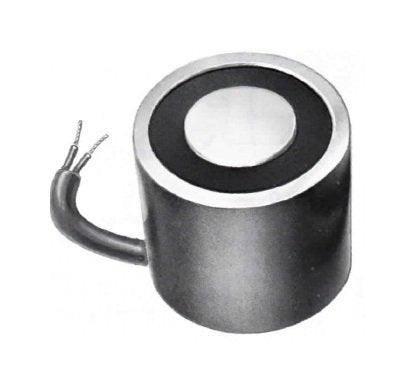

Small Round Flat Faced Electromagnet - 1/2" Diameter
Small Round Flat Faced Electromagnet - 1/2" Diameter
SKU:SMA-be0064
High-performance 1/2" Small Round Electromagnet - Ideal for 4 lb pull capacity, 12V DC, and automated applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Small Round Flat Faced Electromagnet - 1/2" Diameter
$49.99
Quantity: 1
Claim Your Seller Account
Small Round Flat Faced Electromagnet - 1/2" Diameter
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Small Round Flat Faced Electromagnet with 1/2" Diameter and 1 1/2" Height is ideal for applications requiring a 4 lb pull capacity. Operating at 12V DC with optional voltage ratings of 24V and 110V, this electromagnet is suitable for both manual and automated operations. Manufactured with precision, it meets industry standards and offers reliable performance. Consult the factory for custom sizes and modifications.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.
Specifications Diameter A
1/2 in
Specifications Height B
1 1/2 in
Specifications Location Of Leads E
3/16
Specifications Net Weight
1.5 oz
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
1.4 W
Specifications Pull Capacity
4 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread C
6 to 32 in
Specifications Thread Depth D
3/8 in
