Small Round Flat Faced Electromagnet - 10 lb Pull Capacity
Small Round Flat Faced Electromagnet - 10 lb Pull Capacity
SKU:SMA-382ddc
Powerful Small Round Flat Faced Electromagnet with 10 lb Pull Capacity for diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Small Round Flat Faced Electromagnet - 10 lb Pull Capacity
$29.99
Quantity: 1
Claim Your Seller Account
Small Round Flat Faced Electromagnet - 10 lb Pull Capacity
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

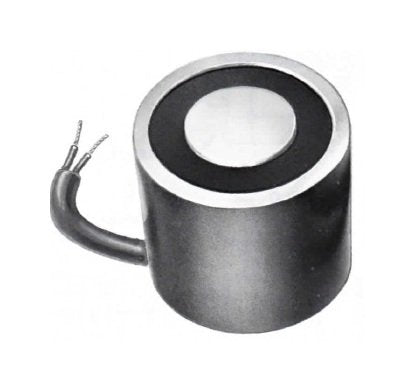

The Small Round Flat Faced Electromagnet features a 3/4 inch diameter and 1 1/4 inch height, ideal for applications requiring a 10 lb pull capacity. Designed for use on flat, smooth surfaces, this electromagnet is suitable for both manual and automated operations. With a power rating of 1.5 W and net weight of 1.7 oz, it offers reliable performance. Optional DC voltage ratings of 24V and 110V provide versatility. Contact the factory for custom sizes and modifications to meet specific requirements.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.
Specifications Diameter A
3/4 in
Specifications Height B
1 1/4 in
Specifications Location Of Leads E
3/16
Specifications Net Weight
1.7 oz
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
1.5 W
Specifications Pull Capacity
10 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread C
10 to 32 in
Specifications Thread Depth D
3/8 in
