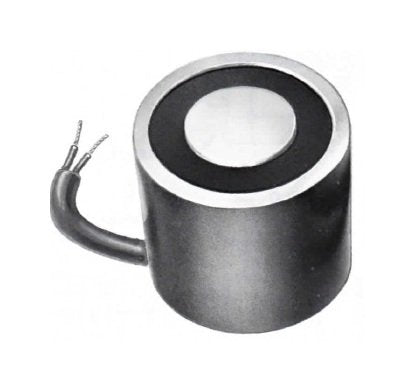

Small Round Flat Faced Electromagnet - 1000 lb Pull Capacity
Small Round Flat Faced Electromagnet - 1000 lb Pull Capacity
SKU:SMA-71063c
Powerful Small Round Flat Faced Electromagnet with 1000 lb pull capacity, ideal for manual and automated applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Small Round Flat Faced Electromagnet - 1000 lb Pull Capacity
$199.99
Quantity: 1
Claim Your Seller Account
Small Round Flat Faced Electromagnet - 1000 lb Pull Capacity
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Small Round Flat Faced Electromagnet with a 1000 lb pull capacity is a versatile solution suitable for both manual and automated applications. With a diameter of 6 inches and a height of 1 1/4 inches, this electromagnet ensures strong magnetic saturation on low carbon steel surfaces. It operates on 12V standard DC voltage with optional ratings of 24V or 110V. The included Rectifier-Controllers convert AC line current to DC, provide switching capabilities, and allow for a clean release of the workpiece. For customization options or additional sizes, consult the factory to meet specific requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.
Specifications Diameter A
6 in
Specifications Height B
1 1/4 in
Specifications Location Of Leads E
7/8 with strain relief
Specifications Net Weight
8 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
7.8 W
Specifications Pull Capacity
1000 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread C
1/4 to 20 in
Specifications Thread Depth D
5/8 in
Specifications Type
2
