Small Round Flat Faced Electromagnet for Industrial Applications

Name: Small Round Flat Faced Electromagnet for Industrial Applications
Brand: Magnetool, Inc.
SKU: SMA-fc9ab9
Price: 129.99 USD
Availability: OutOfStock

SKU:SMA-fc9ab9

High-performance Small Round Flat Faced Electromagnet for industrial applications, 650 lb pull capacity, 12V DC power

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

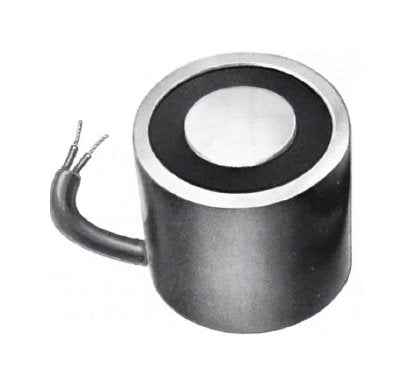

The Small Round Flat Faced Electromagnet is a versatile solution designed for industrial applications. With a diameter of 3 1/2 inches and a height of 1 1/2 inches, this electromagnet provides a pull capacity of 650 lbs, making it ideal for a wide range of manual or automated tasks. The electromagnet operates on 12V DC standard voltage, with optional ratings at 24V and 110V. It features a flat-faced design suitable for use on flat, smooth surfaces, ensuring maximum contact. This electromagnet is manufactured to meet rigorous standards, with additional custom options available upon consultation with the factory.

Product Specifications

Additional Information 0

Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.

Manufacturing Notes 0

Consult factory for additional sizes, modifications and custom applications.

Specifications Diameter A

3 1/2 in

Specifications Height B

1 1/2 in

Specifications Location Of Leads E

5/16

Specifications Net Weight

3 1/4 lb

Specifications Optional Dc Voltage Ratings

24 V | 110 V

Specifications Power

8 W

Specifications Pull Capacity

650 lb

Specifications Standard Dc Voltage

12 V

Specifications Thread C

1/4 to 20 in

Specifications Thread Depth D

1/2 in

Specifications Type

Small Round Flat Faced Electromagnet for Industrial Applications
