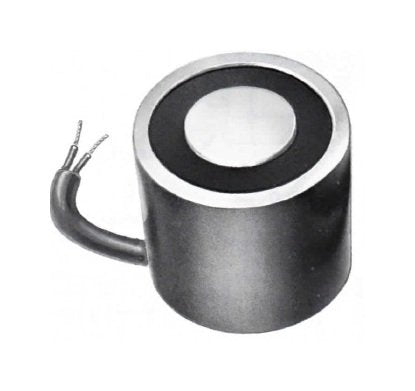

Small Round Flat Faced Electromagnet with 10lb Pull Capacity
Small Round Flat Faced Electromagnet with 10lb Pull Capacity
SKU:SMA-33f90e
Compact electromagnet, 10lb pull capacity, precise on flat surfaces, meets procurement standards
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Small Round Flat Faced Electromagnet with 10lb Pull Capacity
$29.99
Quantity: 1
Claim Your Seller Account
Small Round Flat Faced Electromagnet with 10lb Pull Capacity
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Small Round Flat Faced Electromagnet is designed for precision applications, offering a 10lb pull capacity. With a diameter of 1 inch and a height of 23/32 inch, this electromagnet ensures efficient magnetic saturation on low carbon steel. It operates on 12V DC current and can be enhanced with optional 24V or 110V DC voltage ratings. Ideal for both manual and automated operations, it guarantees a secure hold on flat surfaces, meeting strict procurement standards. Consult the factory for custom sizes or modifications.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.
Specifications Diameter A
1 in
Specifications Height B
23/32 in
Specifications Location Of Leads E
1/8
Specifications Net Weight
1.9 oz
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
1 W
Specifications Pull Capacity
10 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread C
10 to 32 in
Specifications Thread Depth D
3/8 in
