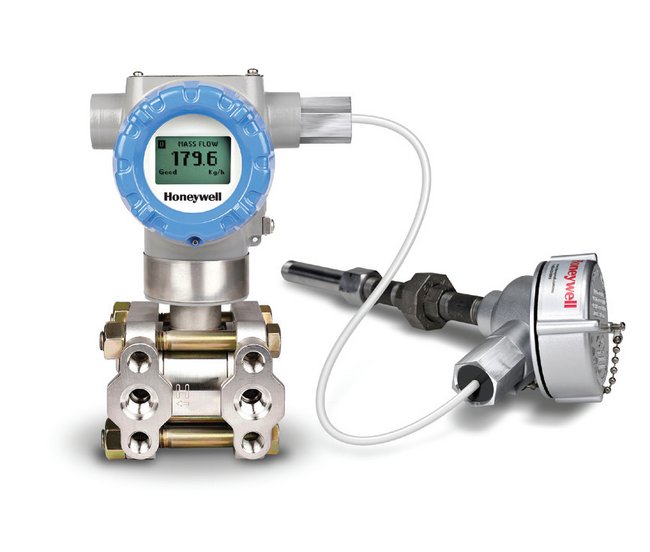

SmartLine® Multivariable Flow Transmitters

Name: SmartLine® Multivariable Flow Transmitters
Brand: Albertus Energy, Inc.
SKU: SMA-4f2734
Price: 49.99 USD
Availability: OutOfStock

SKU:SMA-4f2734

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Discover the smart power of 3-in-1: it is easy, accurate and reliableThe SmartLine® SMV800 has the ability to calculate compensated mass or volume flow rate as a fourth process variable. Meter body-only components are also available to support third party and OEM metering solutions. In addition, it offers simple modularity, universal input for process temperature and advanced display with fail safe measurement helping users improve availability, reduce their inventory by up to 70% and maintenance cost by up to 30%.It is compliant with Experion PKS, HART 7 and Modbus RTU(RS485) providing the highest level of compatibility assurance and integration capabilities.

Product Specifications

Additional Information

SmartLine® Multivariable Transmitter leverages the proven SmartLine® technology to measure three separate process variables by combining sensor technologies for static pressure, differential pressure and process temperature for air, gases, steam and liquids, with minimal process intrusions, lower total cost of ownership and superior performance for accurate and fail safe flow measurement.With the addition of Modbus protocol to SmartLine® Multivariable transmitter SMV800, Honeywell offers a complete range of SmartLine® pressure transmitters to suit every application need.

Features

Used to measure the flow of virtually any liquid, gas, steam or slurry for which a primary flow element exists to provide a differential measurementOEM Multivariable Pressure Transducers - measure both differential pressure and static pressure (absolute or gauge)Built in static pressure and temperature compensationMultiple local display capabilitiesUniversal transmitter terminalsSimple modular designUniversal process temperature input optionDE/HART7/Modbus RTU protocol support

Technical Specs Compensated Flow Response Time

Up to 2x/sec

Technical Specs Differential Pressure Accuracy

0 to 0.04 %

Technical Specs Flow Accuracy

0 to 0.6 %

Technical Specs Range Ability

Up to 400:1

Technical Specs Temperature Accuracy

0 to 0.1 ºC

SmartLine® Multivariable Flow Transmitters
