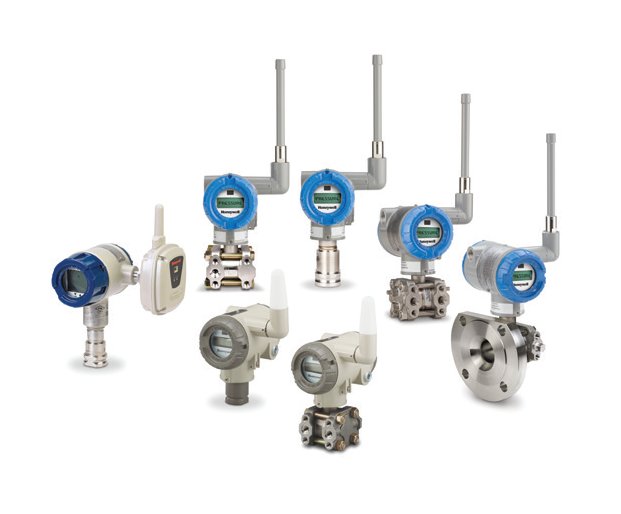

SmartLine® Wireless Pressure transmitters have been enhanced with performance suitable for process control as part of a site-wide industrial wireless strategy.This development keeps pace with end user demands and provides a clear path to meeting future application requirements. SmartLine® Wireless Pressure provides:A scalable and future-proof wireless pressure measurement solutionThe wireless transmitters seamlessly integrate with the Experion® control systemThey are compliant with the ISA100 Wireless protocol and interoperate with other devices on the OneWireless™ network
Product Specifications
Features
Attributes and benefits include:Single plant wide wireless infrastructure for lowest total cost of ownershipOpen, standards based system providing choice of product and supplierBest integrated industrial security available todayExtremely reliable mesh system-field proven for best uptimeFlexible and scalable for designing the network that best fits the application need
Onewireless Adapter

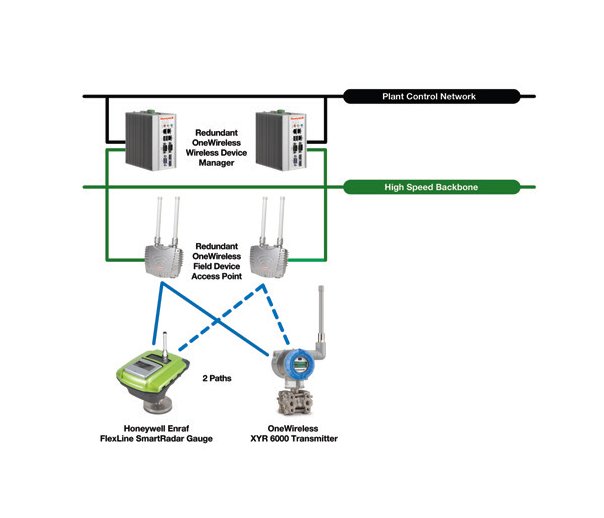

The OneWireless™ Adapter (OWA) transforms a HART device into an ISA100 Wireless compliant wireless device, transmitting this valuable information back to a host system wirelessly. The OWA provides access to: 4 HART dynamic variables (PV, SV, TV, FV), multivariable data, calibration and diagnostic information, device configuration parameters.
Technical Specs Absolute Pressure Range
500 psi | 35 bar
Technical Specs Accuracy
±0.10 %
Technical Specs Analog Input Current
0 to 20 mA | 4 to 20 mA
Technical Specs Analog Input Voltage
0 to 5 V | 1 to 5 V
Technical Specs Battery Life
0 to 10 y
Technical Specs Contact Type
Dry Contact Only
Technical Specs Diagnostics
Extensive Device Status Capability
Technical Specs Differential Pressure Range
10 in·H2O | 400 in·H2O | 100 psi | 3,000 psi | 25 mbar | 1,000 mbar | 7,000 mbar | 210,000 mbar
Technical Specs Directional Antennas Connection
14 dBI
Technical Specs Discrete Inputs
No Voltage or Current
Technical Specs Dual Head Meter Body Gauge Pressure Range
500 psi | 3,000 psi
Technical Specs Enclosures
NEMA Type 4X, IP 66/67 and NEMA 8 (Explosion Proof), Stainless Steel Housing Available
Technical Specs Flange Mount Pressure Range
400 in·H2O | 1,000 mbar
Technical Specs Hazardous Approvals
ATmosphere EXplosible (ATEX) | Canadian Standards Association (CSA) | Factory Mutual (FM) | International Electrotechnical Commission Explosive (IECEx) | National Institute of Metrology, Standardization, and Industrial Quality (InMetro) | Safety Assessment Excellence (SAEx)
Technical Specs Integral Connection
4 dBI
Technical Specs In Line Meter Body Gauge Pressure Range
50 psi | 500 psi | 3,000 psi | 6,000 psi | 10,000 psi | 3.5 bar | 35 bar | 210 bar | 420 bar | 690 bar
Technical Specs Liquid Crystal Display Lcd
Local, Alpha Numeric, 8 Segment, Always On
Technical Specs Maximum Impedance
1 kΩ
Technical Specs Number Of Inputs
3
Technical Specs Omni Directional Connection
8 dBI
Technical Specs Operating Temperature
-40 to 85 ºC | 40 to 185 ºF
Technical Specs Position
Provides Position Monitoring for Items Like Linear Distances or Valve Position
Technical Specs Radio Frequency
2.4 GHz, License Free, Direct Sequence Spread Spectrum (DSSS) Technology; ISA100.11a Compliant
Technical Specs Range
305 m (1000 ft) with Integral 2 dBi Antenna
Technical Specs Remote Probe
Integral and Remote Probe Configurations Available
Technical Specs Remote Seal Absolute Pressure Range
500 psi | 35 bar
Technical Specs Remote Seal Differential Pressure Range
100 psi | 7,000 bar
Technical Specs Remote Seal Gauge Pressure Range
3,000 psi | 210 bar
Technical Specs Remote Seal Pressure Range
400 in·H2O | 1,000 mbar
Technical Specs Sensors Radio Power
125 to 400 mW
Technical Specs Software
Local and Software Configurable
Technical Specs Temperaturediscrete Input Di
Temperature + DI; 3 TC Max, 2 RTD Max, 3 DIs Max
Technical Specs Transmitter Power
2 "D" size 3.6 V Li - Non Rechargeable Batteries
Technical Specs Wireless Solutions
OneWireless™ Compatible and ISA100 Compliant
