SMBTI 10mm Tube OD 1/4" Thread Male Branch Tee Fitting
SMBTI 10mm Tube OD 1/4" Thread Male Branch Tee Fitting
SKU:SMB-25bcb0
Enhance productivity with SMBTI 10mm Tube OD 1/4" Thread Male Branch Tee Fitting. Superior compression, safety & compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMBTI 10mm Tube OD 1/4" Thread Male Branch Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SMBTI 10mm Tube OD 1/4" Thread Male Branch Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

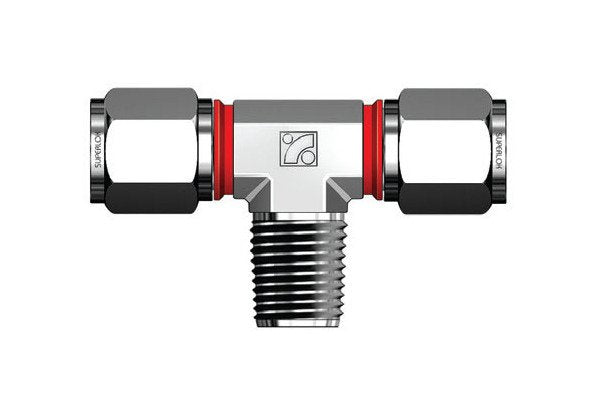

The SMBTI Series 10mm Tube Outside Diameter (D) and 1/4 Inch Thread Size (T) Male Branch Tee Fitting is designed to connect metric tubes to female ISO tapered threads. Crafted from high-quality materials like Alloy 625, Alloy 825, Stainless Steel, and more, it features the innovative i-Fitting® components for superior compression and safety. This fitting not only enhances productivity and reduces costs but also meets stringent industry standards for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

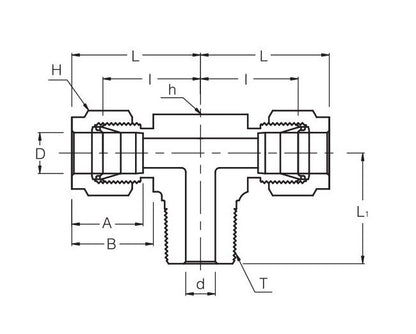

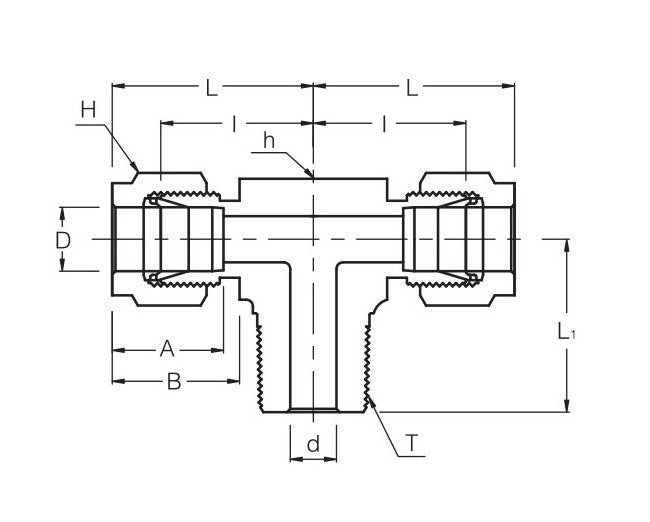

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension I
23.9 mm
Technical Specs Dimension L
31.5 mm
Technical Specs Dimension L1
28.2 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.1 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
