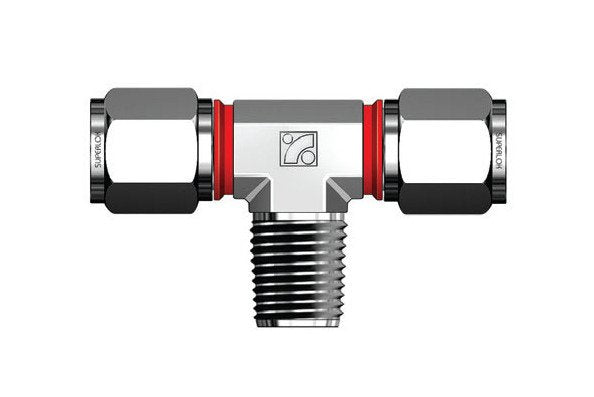

SMBTI Series 20mm Tube Male Branch Tee Fitting
SMBTI Series 20mm Tube Male Branch Tee Fitting
SKU:SMB-ab72e3
Enhance your industrial connections with the SMBTI Branch Tee Fitting. Reliable, precise, and safety-focused design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMBTI Series 20mm Tube Male Branch Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SMBTI Series 20mm Tube Male Branch Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMBTI Series 20mm Tube Male Branch Tee Fitting is designed to connect metric tubes to female ISO tapered threads with precision and reliability. Made from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and efficiency in various industrial applications. Featuring i-Fitting® components like a built-in gap gauge, it enhances safety by preventing over- and under-tightening issues, making it ideal for high-pressure environments. Experience improved productivity, cost-efficiency, and compliance with industry standards with this innovative and patented design from BMT.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

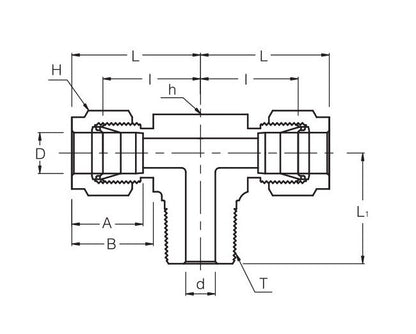

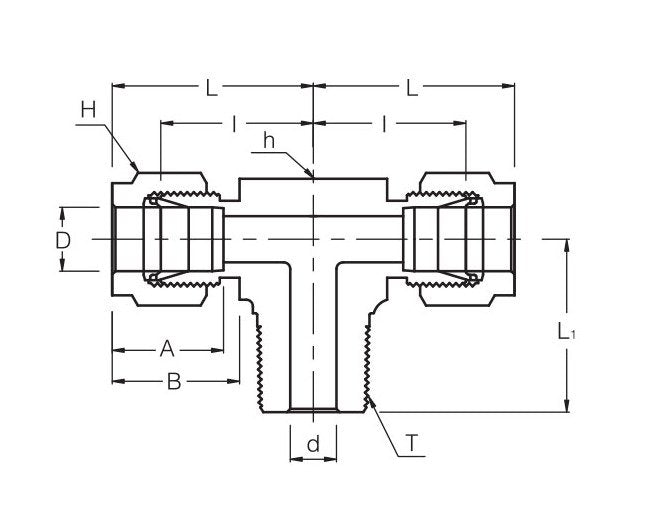

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
26.0 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
34.5 mm
Technical Specs Dimension L
44.6 mm
Technical Specs Dimension L1
41.7 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/4 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
20 mm
Technical Specs Width Across Flat H
32 mm
