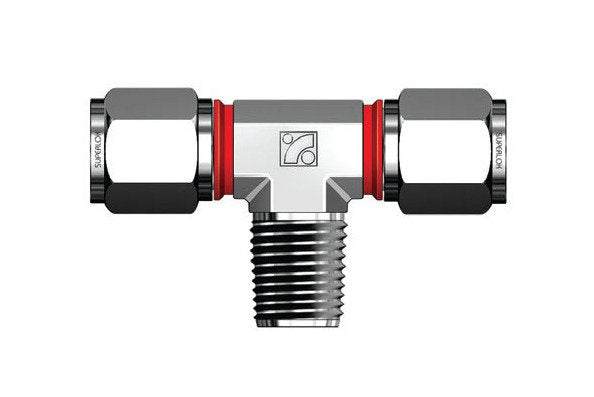

SMBTI Series 3/8in Tube OD Male Branch Tee Fitting
SMBTI Series 3/8in Tube OD Male Branch Tee Fitting
SKU:SMB-93b01e
Premium Male Branch Tee Fitting for precise tube-to-thread connections. Enhance safety & productivity with i-Fitting® design.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
SMBTI Series 3/8in Tube OD Male Branch Tee Fitting
$14.99
Quantity: 1
Claim Your Seller Account
SMBTI Series 3/8in Tube OD Male Branch Tee Fitting
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMBTI Series Male Branch Tee Fitting is an essential component for connecting fractional tubes to female NPT threads. Made from premium materials like Alloy 625, Alloy 825, and Stainless Steel, this fitting offers precise dimensions and a patented i-Fitting® design that ensures perfect compression, increases installer safety, and boosts productivity. With features like the built-in gap gauge check ring and compatibility with various materials, this fitting is ideal for high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

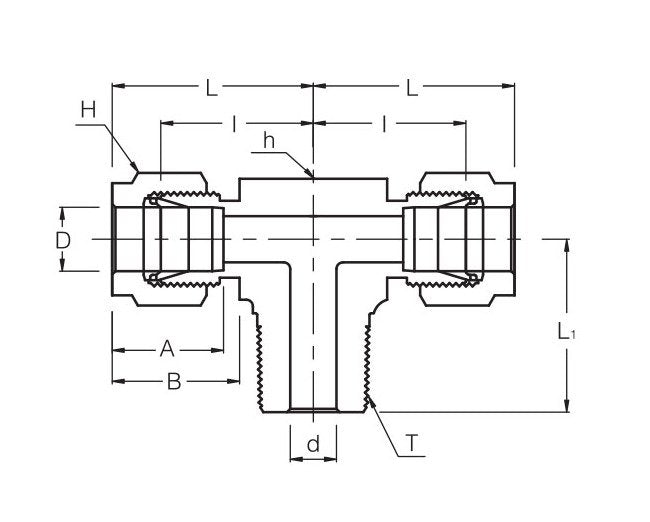

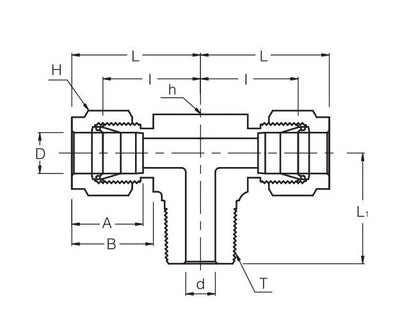

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
23.11 mm
Technical Specs Dimension L
30.48 mm
Technical Specs Dimension L1
25.4 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
