SMBTI Series Male Branch Tee Fitting - 12mm Tube OD x 3/8' Thread Size
SMBTI Series Male Branch Tee Fitting - 12mm Tube OD x 3/8' Thread Size
SKU:SMB-991d5c
Enhance fluid connections with precision using our SMBTI Male Branch Tee Fitting - designed for 12mm tubes and 3/8' threads.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMBTI Series Male Branch Tee Fitting - 12mm Tube OD x 3/8' Thread Size
$29.99
Quantity: 1
Claim Your Seller Account
SMBTI Series Male Branch Tee Fitting - 12mm Tube OD x 3/8' Thread Size
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

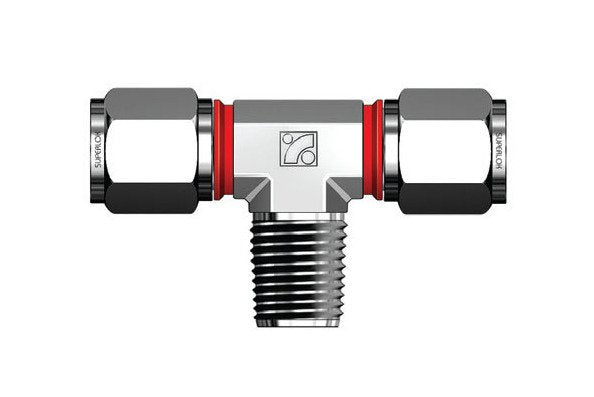

Upgrade your fluid system with our SMBTI Series Male Branch Tee Fitting designed to connect 12mm metric tubes to female ISO tapered threads. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability in diverse applications. The innovative i-Fitting® design enhances installation safety, increases productivity, and reduces costs, making it ideal for high-pressure environments. Experience precise compression and optimal performance with our industry-changing male branch tee fitting.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

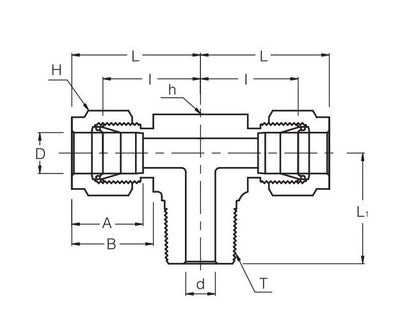

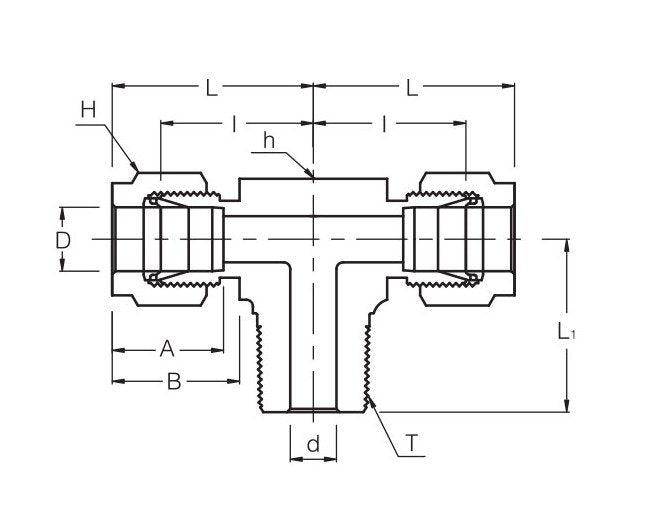

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.0 mm
Technical Specs Dimension L1
28.2 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
