SMCI Series 1/4in Tube OD & 1/2in Thread Male Connector Fitting
SMCI Series 1/4in Tube OD & 1/2in Thread Male Connector Fitting
SKU:SMC-ffca83
High-performance Male Connector Fitting for precise tube-to-thread connections, featuring innovative i-Fitting® components and durable materials.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
SMCI Series 1/4in Tube OD & 1/2in Thread Male Connector Fitting
$35.99
Quantity: 1
Claim Your Seller Account
SMCI Series 1/4in Tube OD & 1/2in Thread Male Connector Fitting
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

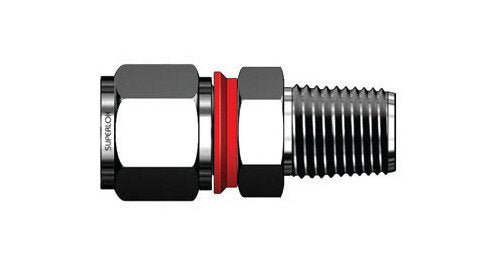

The SMCI Series Male Connector Fitting is expertly designed to seamlessly connect a fractional tube to a female NPT thread. Crafted from high-quality materials such as Alloy 625, Alloy 825, Stainless Steel, and more, this male connector ensures durability and reliability. It features innovative i-Fitting® components, including a built-in check ring for perfect compression, enhancing safety, productivity, and cost-efficiency. Ideal for valve connections in high-pressure and chemical environments, this fitting surpasses industry standards for performance and ease of installation.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

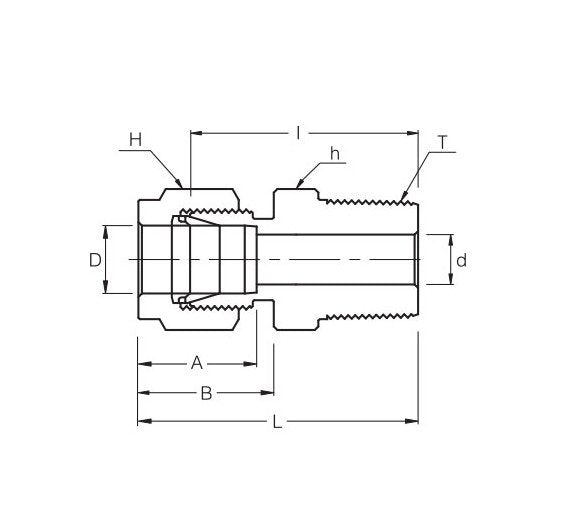

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
37.33 mm
Technical Specs Dimension L
44.70 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
