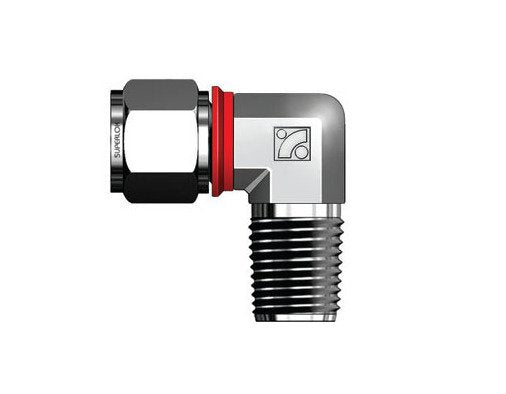

SMEI Series 10mm Tube Male Elbow with 1/2" Thread
SMEI Series 10mm Tube Male Elbow with 1/2" Thread
SKU:SME-4344e5
Securely connect metric tubes to female ISO tapered threads with the SMEI Series 10mm Tube Male Elbow. Innovative i-Fitting® technology ensures perfect compression and safety in high-pressure environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMEI Series 10mm Tube Male Elbow with 1/2" Thread
$29.99
Quantity: 1
Claim Your Seller Account
SMEI Series 10mm Tube Male Elbow with 1/2" Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMEI Series 10mm Tube Male Elbow with 1/2" Thread is designed to securely connect metric tubes to female ISO tapered threads. Made from a variety of durable materials like stainless steel and alloy, this male elbow features the innovative i-Fitting® technology ensuring perfect compression and increased safety in high-pressure environments. With dimensions ranging from 6mm to 25mm, this industry-changing patented design by BMT enhances productivity while reducing costs. This male elbow is a reliable solution for valve connections in diverse applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

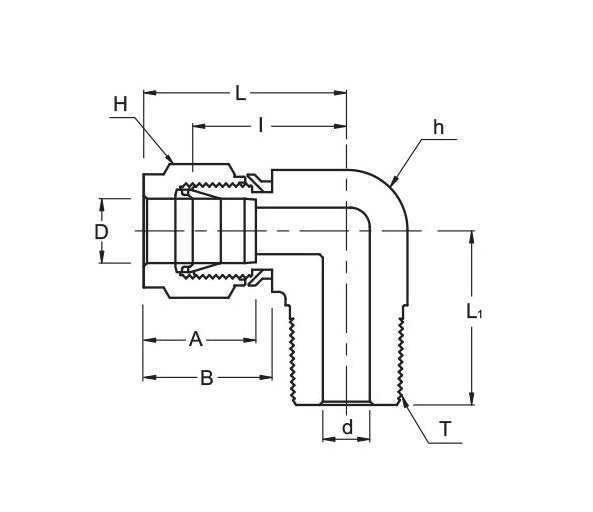

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
33.5 mm
Technical Specs Dimension L1
33.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
