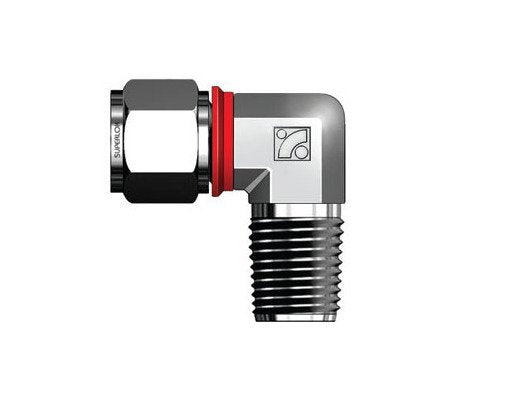

SMEI Series Male Elbow - 12mm Tube OD, 3/4in Thread Male Connector
SMEI Series Male Elbow - 12mm Tube OD, 3/4in Thread Male Connector
SKU:SME-c37df3
Seamlessly connect metric tubes to ISO threads with our durable SMEI Male Elbow. Patented design for safety & productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMEI Series Male Elbow - 12mm Tube OD, 3/4in Thread Male Connector
$29.99
Quantity: 1
Claim Your Seller Account
SMEI Series Male Elbow - 12mm Tube OD, 3/4in Thread Male Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMEI Series Male Elbow is designed to seamlessly connect 12mm outside diameter metric tubes to female ISO tapered threads. Constructed from robust materials including, Alloy 625, Alloy 825, and stainless steel, this male elbow ensures durability and reliability in high-pressure environments. Featuring i-Fitting® components with a patented design by BMT, it offers enhanced safety, precise fitting compression, and increased installer productivity. Ideal for valve connections, this male elbow surpasses industry standards for quality and performance.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

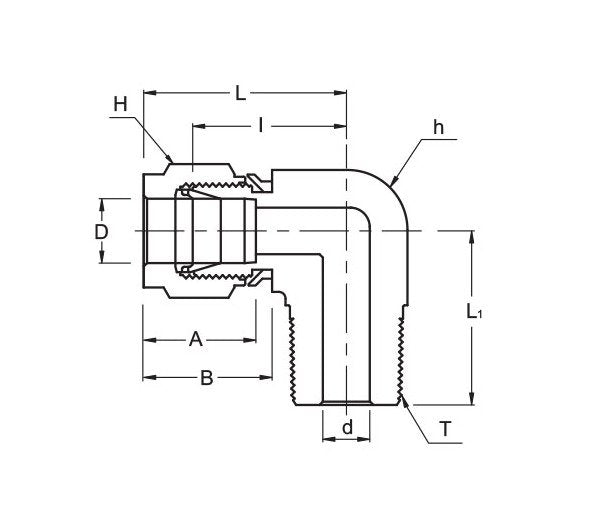

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
29.7 mm
Technical Specs Dimension L
39.8 mm
Technical Specs Dimension L1
36.8 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/4 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
