SMRTI 1/4 in Male Run Tee Fitting
SMRTI 1/4 in Male Run Tee Fitting
SKU:SMR-e72ffe
High-quality 1/4 in Male Run Tee Fitting for secure and efficient tube-to-thread connections. Patented i-Fitting® design for enhanced safety and productivity.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SMRTI 1/4 in Male Run Tee Fitting
$24.99
Quantity: 1
Claim Your Seller Account
SMRTI 1/4 in Male Run Tee Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

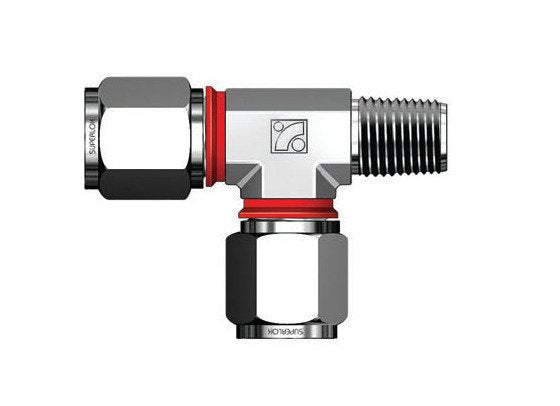

The SMRTI Series 1/4 Inch Tube Outside Diameter and Thread Size Male Run Tee Fitting is designed to connect fractional tubes to female NPT threads with precision and efficiency. Constructed from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability in diverse applications. Featuring BMT's patented i-Fitting® design, it enhances safety, productivity, and cost-efficiency in high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

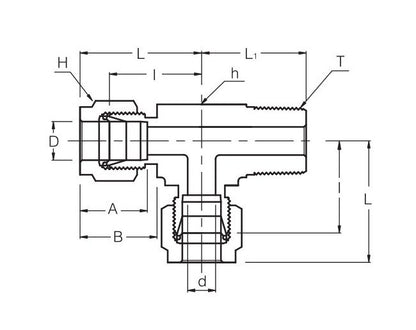

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
19.55 mm
Technical Specs Dimension L
26.92 mm
Technical Specs Dimension L1
23.36 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
