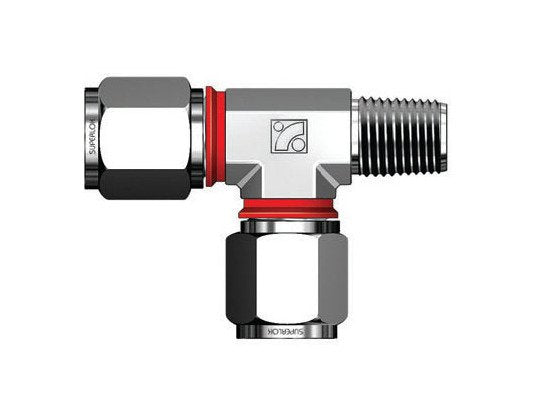

SMRTI Series 1/2in Tube OD & 3/8in Thread Male Run Tee Fitting
SMRTI Series 1/2in Tube OD & 3/8in Thread Male Run Tee Fitting
SKU:SMR-79579c
Premium SMRTI Male Run Tee Fitting: 1/2in tube OD to 3/8in NPT, i-Fitting® technology ensures safety & efficiency.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
SMRTI Series 1/2in Tube OD & 3/8in Thread Male Run Tee Fitting
$25.99
Quantity: 1
Claim Your Seller Account
SMRTI Series 1/2in Tube OD & 3/8in Thread Male Run Tee Fitting
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMRTI Series Male Run Tee Fitting is expertly designed to connect 1/2in tube outside diameter to a 3/8in National Pipe Thread. Crafted from premium materials like Alloy 625 and Stainless Steel, it features innovative i-Fitting® components for perfect compression, ensuring installer safety, productivity, and cost-efficiency. With built-in gap gauges and industry-changing patented design, this fitting exceeds industry standards for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

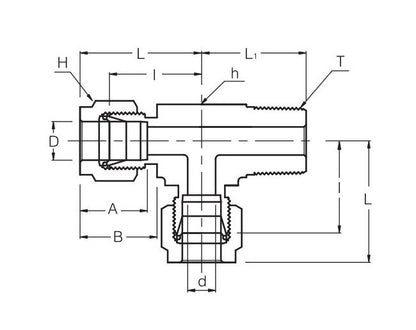

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.06 mm
Technical Specs Dimension L1
28.19 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.65 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
