SMRTI Series 1/4in Tube OD 1/8in Male Run Tee Fitting
SMRTI Series 1/4in Tube OD 1/8in Male Run Tee Fitting
SKU:SMR-94d6c3
Ensure secure fractional tube to NPT thread connections with our SMRTI Male Run Tee Fitting.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SMRTI Series 1/4in Tube OD 1/8in Male Run Tee Fitting
$24.99
Quantity: 1
Claim Your Seller Account
SMRTI Series 1/4in Tube OD 1/8in Male Run Tee Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMRTI Series 1/4in Tube OD 1/8in Male Run Tee Fitting is designed to connect fractional tubes to female NPT threads efficiently and securely. Made from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliability in high-pressure and chemical environments. Featuring i-Fitting® components with unique check ring technology, this fitting prevents over- and under-tightening, enhancing installer safety and productivity. With precise dimensions and a patented design by BMT, this fitting guarantees optimal compression and performance, making it ideal for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

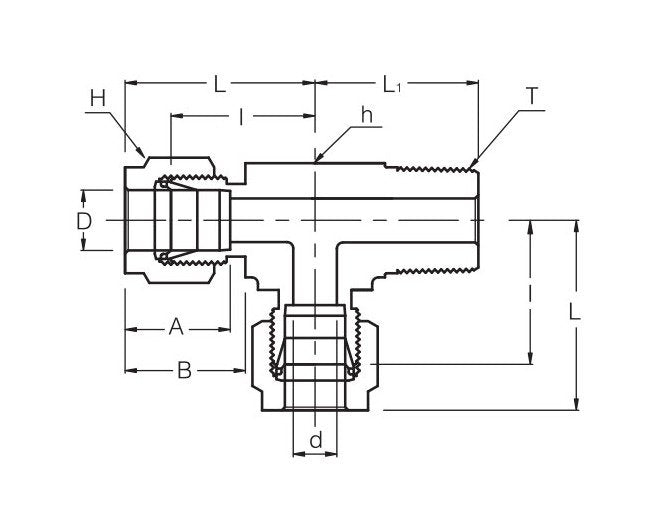

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
19.55 mm
Technical Specs Dimension L
26.92 mm
Technical Specs Dimension L1
18.79 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
