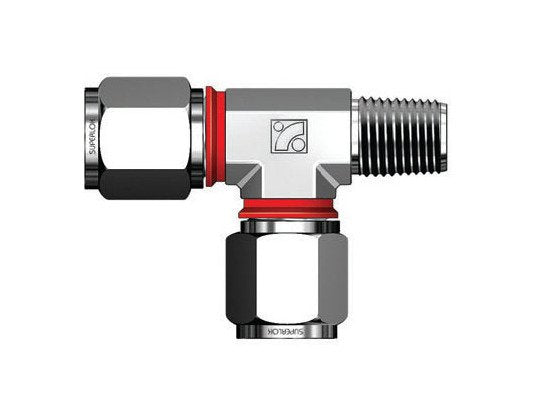

SMRTI Series 12mm Tube Male Run Tee Fitting
SMRTI Series 12mm Tube Male Run Tee Fitting
SKU:SMR-e7b44e
Connect metric tubes to ISO tapered threads with precision using the SMRTI Series 12mm Male Run Tee Fitting for enhanced safety and productivity.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SMRTI Series 12mm Tube Male Run Tee Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SMRTI Series 12mm Tube Male Run Tee Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMRTI Series 12mm Tube Male Run Tee Fitting is designed to connect metric tubes to female ISO tapered threads with precision engineering. Made from high-quality materials such as Alloy 625, 825, C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, and Stainless Steel, this fitting ensures durability and reliability in various applications. Featuring i-Fitting® components and a patented check ring design, it offers enhanced safety and productivity in high-pressure environments. With dimensions conforming to industry standards and innovative features like the built-in gap gauge, this fitting is a game-changer for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

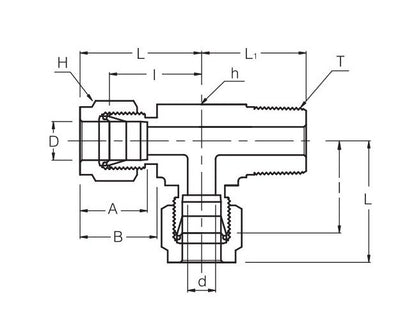

Technical Specs Connection Type
Male
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.0 mm
Technical Specs Dimension L1
33.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
