SMRTI Series 20mm Tube OD Male Run Tee Fitting
SMRTI Series 20mm Tube OD Male Run Tee Fitting
SKU:SMR-a2f711
Precision-engineered SMRTI Series 20mm Tube OD Male Run Tee Fitting for secure metric tube connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMRTI Series 20mm Tube OD Male Run Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SMRTI Series 20mm Tube OD Male Run Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

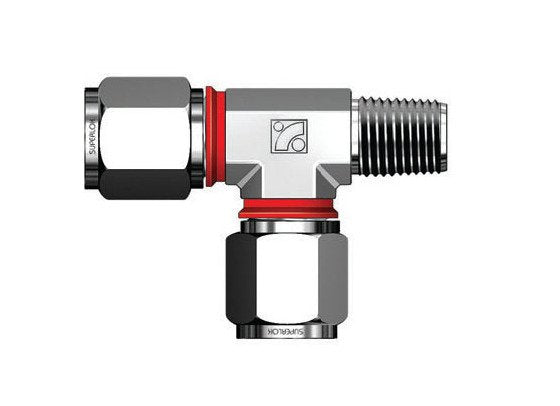

The SMRTI Series 20mm Tube OD Male Run Tee Fitting is designed to connect metric tubes to female ISO tapered threads with precision and reliability. Constructed from high-quality materials like Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and corrosion resistance. Its innovative i-Fitting® components, including a check ring for perfect compression, enhance safety in high-pressure environments. With dimensions designed for optimal performance, this fitting is ideal for valve connections, improving productivity, and reducing costs.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

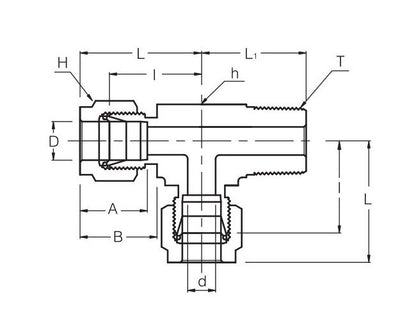

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
26.0 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
34.5 mm
Technical Specs Dimension L
44.6 mm
Technical Specs Dimension L1
41.7 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/4 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
20 mm
Technical Specs Width Across Flat H
32 mm
