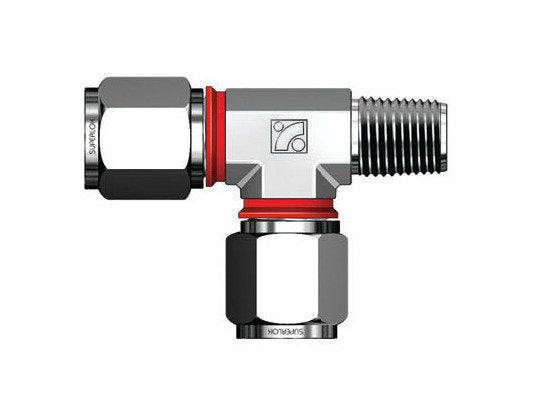

SMRTI Series 3/8in Tube OD Male Run Tee Fitting
SMRTI Series 3/8in Tube OD Male Run Tee Fitting
SKU:SMR-ca96ef
High-quality Male Run Tee Fitting for 3/8in tubes connecting to NPT threads. Patented design ensures safety, efficiency, and industry compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMRTI Series 3/8in Tube OD Male Run Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SMRTI Series 3/8in Tube OD Male Run Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMRTI Series Male Run Tee Fitting is engineered to connect 3/8-inch fractional tubes to female NPT threads with precision and reliability. Crafted from high-quality materials like Alloy 625, Alloy 825, and stainless steel, this fitting features i-Fitting® components that ensure perfect compression, enhancing safety in high-pressure environments. Its patented design by BMT includes a built-in check ring for optimal installation, productivity, and cost efficiency. Ideal for valve connections, this fitting meets stringent industry standards for performance and durability.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
23.11 mm
Technical Specs Dimension L
30.48 mm
Technical Specs Dimension L1
25.4 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
