SMRTI Series 6mm Tube OD & 1/4in Thread Male Run Tee Fitting
SMRTI Series 6mm Tube OD & 1/4in Thread Male Run Tee Fitting
SKU:SMR-95bbdb
Enhance connections with precision using the SMRTI Series Male Run Tee Fitting, designed for optimal safety, productivity, and cost-efficiency.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SMRTI Series 6mm Tube OD & 1/4in Thread Male Run Tee Fitting
$24.99
Quantity: 1
Claim Your Seller Account
SMRTI Series 6mm Tube OD & 1/4in Thread Male Run Tee Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

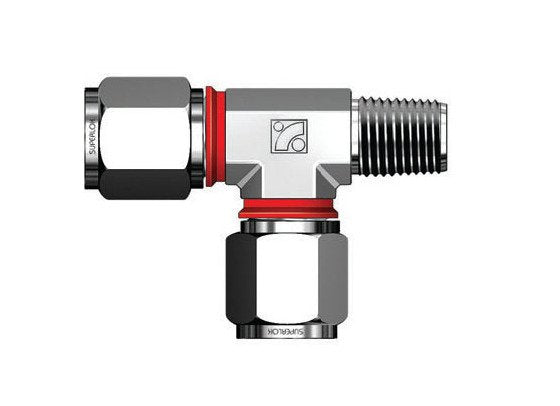

The SMRTI Series Male Run Tee Fitting is expertly designed to connect metric tubes to female ISO tapered threads with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures robust performance in diverse environments. Featuring the innovative i-Fitting® design with a built-in gap gauge for optimal compression, this fitting enhances safety, productivity, and cost-efficiency. Perfect for valve connections, this industry-changing fitting meets the highest standards of quality and performance.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

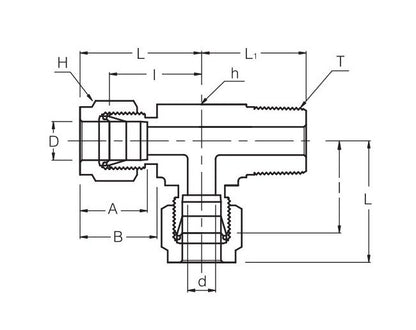

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
19.6 mm
Technical Specs Dimension L
27.0 mm
Technical Specs Dimension L1
23.4 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
