SMRTI Series 8mm Tube OD & 1/4in Thread Male Run Tee
SMRTI Series 8mm Tube OD & 1/4in Thread Male Run Tee
SKU:SMR-73c7a3
High-performance Male Run Tee Fitting for metric tubes, with i-Fitting® components for safety and productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SMRTI Series 8mm Tube OD & 1/4in Thread Male Run Tee
$29.99
Quantity: 1
Claim Your Seller Account
SMRTI Series 8mm Tube OD & 1/4in Thread Male Run Tee
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

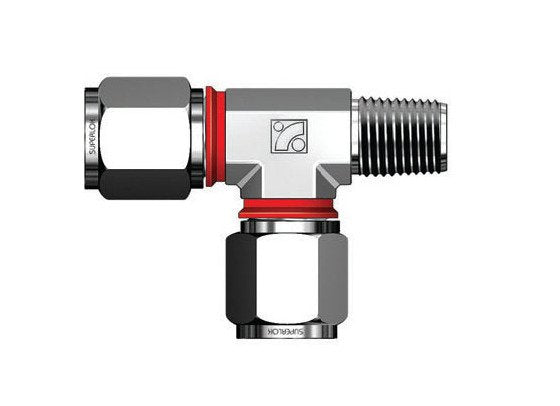

The SMRTI Series 8mm Tube OD & 1/4in Thread Male Run Tee Fitting is designed to connect metric tubes to female ISO tapered threads. Crafted from high-quality materials like Alloy 625, Stainless Steel, and more, this male run tee fitting ensures a secure and leak-free connection. Featuring patented i-Fitting® components for installer safety, precise compression, and enhanced productivity, this fitting is ideal for high-pressure and chemically challenging environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
22.4 mm
Technical Specs Dimension L
29.9 mm
Technical Specs Dimension L1
25.4 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
