SMRTI Series Male Run Tee Fitting 16mm Tube OD 1/2in Thread

Name: SMRTI Series Male Run Tee Fitting 16mm Tube OD 1/2in Thread
Brand: Superlok-Mako Products LLC
SKU: SMR-1b7b9b
Price: 34.99 USD
Availability: OutOfStock

SKU:SMR-1b7b9b

Enhance connections with the SMRTI Series 16mm Tube OD Male Run Tee Fitting, featuring patented i-Fitting® design for precise compression and enhanced safety.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SMRTI Series 16mm Tube OD Male Run Tee Fitting is designed to connect metric tubes to female ISO tapered threads with precision and reliability. Made of high-quality materials including Alloy 625, Alloy 825, and stainless steel, this fitting boasts a patented i-Fitting® design for perfect compression, enhanced installer safety in high-pressure environments, and increased productivity. With dimensions meeting industry standards and a built-in check ring for accurate tightening, this fitting is ideal for valve connections, offering durability and performance in diverse applications.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

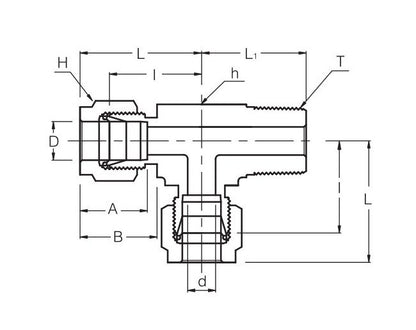

Technical Specs Connection Type

Male

Technical Specs Dimension A

24.4 mm

Technical Specs Dimension B

22.0 mm

Technical Specs Dimension I

27.9 mm

Technical Specs Dimension L

38.0 mm

Technical Specs Dimension L1

35.1 mm

Technical Specs Material

Technical Specs Minimum Dimension D

11.9 mm

Technical Specs Standard Size

6 to 25 mm

Technical Specs Thread Size T

1/2 in

Technical Specs Thread Type

Pipe Thread (PT)

Technical Specs Tube Outside Diameter D

16 mm

Technical Specs Width Across Flat H

25 mm
