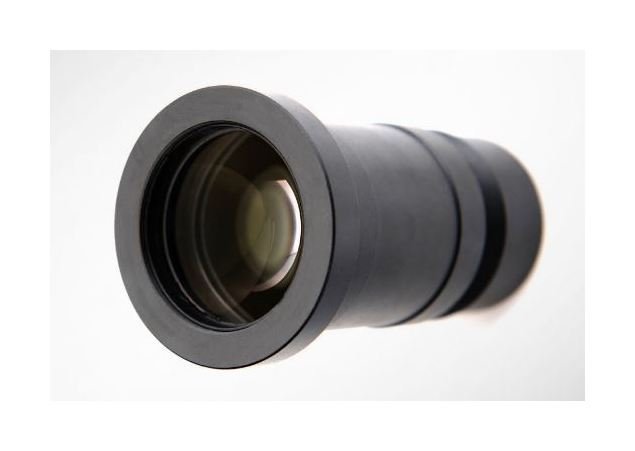

SO-BE-125-050 Precision Stock Beam Expander

Name: SO-BE-125-050 Precision Stock Beam Expander
Brand: Shanghai Optics
SKU: STO-3c0b50
Price: 599.99 USD
Availability: OutOfStock

SKU:STO-3c0b50

Enhance beam control with the SO-BE-125-050 Precision Stock Beam Expander featuring versatile design for multiple wavelengths & adjustable divergence angle.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SO-BE-125-050 Precision Stock Beam Expander is a versatile optical tool designed for precise beam expansion across multiple wavelengths including 9.3 μm, 10.6 μm, and 1064 nm. With a magnification of 2.5x and adjustable divergence angle of ±5 degrees, this beam expander ensures optimal performance. Its robust design features a maximum pupil diameter of 5 and a maximum outgoing spot diameter of 12.5, making it ideal for various applications requiring enhanced beam control. The interface options of M22×0.75 and M22×1 offer compatibility with different systems, while the maximum shell dimensions of 55, 57.4, and 84.75 provide flexibility in installation. Elevate your optical setup with the precision and reliability of the SO-BE-125-050 Stock Beam Expander.

Product Specifications

Specifications Adjustable Divergence Angle

Â±5

Specifications Design Wavelength

9.3 Âµm | 10.6 Âµm | 1064 nm

Specifications Interface

M22Ã0.75 | M22Ã1

Specifications Magnification

2.5Ã

Specifications Maximum Outgoing Spot Diameter

12.5

Specifications Maximum Pupil Diameter

Specifications Maximum Shell Diameter

25 | 27 | 28 | 31

Specifications Maximum Shell Length

55 | 57.4 | 84.75

SO-BE-125-050 Precision Stock Beam Expander
